10: Projection, Outliers, and Influence.

class: center, middle, inverse, title-slide

.title[
# 10: Projection, Outliers, and Influence.
]
.subtitle[
## Linear Models
]
.author[
### <large>Jaye Seawright</large>
]
.institute[
### <small>Northwestern Political Science</small>
]
.date[
### Feb. 9, 2026
]

---

class: center, middle

pre[class] {
  max-height: 200px;
}
</style>

```
##
## Attaching package: 'plotly'
```

```
## The following object is masked from 'package:ggplot2':
##
##     last_plot
```

```
## The following object is masked from 'package:stats':
##
##     filter
```

```
## The following object is masked from 'package:graphics':
##
##     layout
```

---

<div class="plotly html-widget html-fill-item" id="htmlwidget-de7608dda5fb4613d08b" style="width:90%;height:504px;"></div>
<script type="application/json" data-for="htmlwidget-de7608dda5fb4613d08b">{"x":{"visdat":{"916ceab43cc":["function () ","plotlyVisDat"],"916c7a6e25e7":["function () ","data"],"916c10f33d0":["function () ","data"]},"cur_data":"916c10f33d0","attrs":{"916ceab43cc":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"z":[[0.66746405377222673,0.67106675710276475,0.67466946043330278,0.67827216376384081,0.68187486709437894,0.68547757042491697,0.68908027375545489,0.69268297708599302,0.69628568041653105,0.69988838374706908,0.7034910870776071,0.70709379040814513,0.71069649373868315,0.71429919706922118,0.71790190039975921,0.72150460373029723,0.72510730706083537,0.72871001039137329,0.73231271372191131,0.73591541705244945,0.73951812038298737,0.74312082371352539,0.74672352704406353,0.75032623037460155,0.75392893370513958,0.7575316370356775,0.76113434036621563,0.76473704369675377,0.76833974702729169,0.7719424503578296],[0.65977831845754231,0.66338102178808045,0.66698372511861836,0.6705864284491565,0.67418913177969464,0.67779183511023255,0.68139453844077047,0.68499724177130861,0.68859994510184674,0.69220264843238466,0.6958053517629228,0.69940805509346071,0.70301075842399885,0.70661346175453676,0.7102161650850749,0.71381886841561282,0.71742157174615095,0.72102427507668887,0.72462697840722701,0.72822968173776514,0.73183238506830306,0.73543508839884097,0.73903779172937911,0.74264049505991725,0.74624319839045516,0.74984590172099308,0.75344860505153122,0.75705130838206935,0.76065401171260727,0.76425671504314519],[0.65209258314285801,0.65569528647339603,0.65929798980393406,0.66290069313447209,0.66650339646501022,0.67010609979554825,0.67370880312608616,0.6773115064566243,0.68091420978716233,0.68451691311770035,0.68811961644823838,0.69172231977877641,0.69532502310931443,0.69892772643985246,0.70253042977039049,0.70613313310092851,0.70973583643146665,0.71333853976200456,0.71694124309254259,0.72054394642308073,0.72414664975361864,0.72774935308415667,0.73135205641469481,0.73495475974523283,0.73855746307577086,0.74216016640630877,0.74576286973684691,0.74936557306738505,0.75296827639792296,0.75657097972846088],[0.6444068478281737,0.64800955115871184,0.65161225448924975,0.65521495781978789,0.65881766115032603,0.66242036448086394,0.66602306781140186,0.66962577114194,0.67322847447247813,0.67683117780301605,0.68043388113355419,0.6840365844640921,0.68763928779463024,0.69124199112516815,0.69484469445570629,0.69844739778624421,0.70205010111678234,0.70565280444732026,0.7092555077778584,0.71285821110839653,0.71646091443893445,0.72006361776947236,0.7236663211000105,0.72726902443054864,0.73087172776108655,0.73447443109162447,0.73807713442216261,0.74167983775270074,0.74528254108323866,0.74888524441377657],[0.6367211125134894,0.64032381584402742,0.64392651917456545,0.64752922250510347,0.65113192583564161,0.65473462916617964,0.65833733249671755,0.66194003582725569,0.66554273915779372,0.66914544248833174,0.67274814581886977,0.6763508491494078,0.67995355247994582,0.68355625581048385,0.68715895914102187,0.6907616624715599,0.69436436580209804,0.69796706913263595,0.70156977246317398,0.70517247579371212,0.70877517912425003,0.71237788245478806,0.7159805857853262,0.71958328911586422,0.72318599244640225,0.72678869577694016,0.7303913991074783,0.73399410243801644,0.73759680576855435,0.74119950909909227],[0.62903537719880509,0.63263808052934301,0.63624078385988114,0.63984348719041906,0.6434461905209572,0.64704889385149533,0.65065159718203325,0.65425430051257139,0.6578570038431093,0.66145970717364744,0.66506241050418535,0.66866511383472349,0.67226781716526141,0.67587052049579954,0.67947322382633746,0.6830759271568756,0.68667863048741373,0.69028133381795165,0.69388403714848956,0.6974867404790277,0.70108944380956562,0.70469214714010375,0.70829485047064189,0.71189755380117981,0.71550025713171794,0.71910296046225586,0.722705663792794,0.72630836712333213,0.72991107045387005,0.73351377378440796],[0.62134964188412067,0.6249523452146587,0.62855504854519673,0.63215775187573475,0.63576045520627289,0.63936315853681092,0.64296586186734883,0.64656856519788697,0.65017126852842499,0.65377397185896302,0.65737667518950105,0.66097937852003907,0.6645820818505771,0.66818478518111513,0.67178748851165315,0.67539019184219118,0.67899289517272932,0.68259559850326723,0.68619830183380526,0.68980100516434339,0.69340370849488131,0.69700641182541934,0.70060911515595747,0.7042118184864955,0.70781452181703353,0.71141722514757144,0.71501992847810958,0.71862263180864772,0.72222533513918563,0.72582803846972355],[0.61366390656943626,0.61726660989997439,0.62086931323051231,0.62447201656105045,0.62807471989158858,0.6316774232221265,0.63528012655266441,0.63888282988320255,0.64248553321374069,0.6460882365442786,0.64969093987481674,0.65329364320535466,0.65689634653589279,0.66049904986643071,0.66410175319696885,0.66770445652750676,0.6713071598580449,0.67490986318858281,0.67851256651912095,0.68211526984965909,0.685717973180197,0.68932067651073492,0.69292337984127306,0.69652608317181119,0.70012878650234911,0.70373148983288702,0.70733419316342516,0.7109368964939633,0.71453959982450121,0.71814230315503913],[0.60597817125475206,0.60958087458529009,0.61318357791582812,0.61678628124636614,0.62038898457690428,0.62399168790744231,0.62759439123798022,0.63119709456851836,0.63479979789905638,0.63840250122959441,0.64200520456013244,0.64560790789067046,0.64921061122120849,0.65281331455174652,0.65641601788228454,0.66001872121282257,0.66362142454336071,0.66722412787389862,0.67082683120443665,0.67442953453497478,0.6780322378655127,0.68163494119605073,0.68523764452658886,0.68884034785712689,0.69244305118766492,0.69604575451820283,0.69964845784874097,0.70325116117927911,0.70685386450981702,0.71045656784035494],[0.59829243594006765,0.60189513927060578,0.6054978426011437,0.60910054593168184,0.61270324926221997,0.61630595259275789,0.6199086559232958,0.62351135925383394,0.62711406258437208,0.63071676591490999,0.63431946924544813,0.63792217257598605,0.64152487590652418,0.6451275792370621,0.64873028256760024,0.65233298589813815,0.65593568922867629,0.6595383925592142,0.66314109588975234,0.66674379922029048,0.67034650255082839,0.67394920588136631,0.67755190921190445,0.68115461254244258,0.6847573158729805,0.68836001920351841,0.69196272253405655,0.69556542586459469,0.6991681291951326,0.70277083252567052],[0.59060670062538334,0.59420940395592137,0.59781210728645939,0.60141481061699742,0.60501751394753556,0.60862021727807358,0.6122229206086115,0.61582562393914964,0.61942832726968766,0.62303103060022569,0.62663373393076371,0.63023643726130174,0.63383914059183977,0.63744184392237779,0.64104454725291582,0.64464725058345385,0.64824995391399198,0.6518526572445299,0.65545536057506792,0.65905806390560606,0.66266076723614398,0.666263470566682,0.66986617389722014,0.67346887722775817,0.67707158055829619,0.68067428388883411,0.68427698721937225,0.68787969054991038,0.6914823938804483,0.69508509721098621],[0.58292096531069904,0.58652366864123695,0.59012637197177509,0.593729075302313,0.59733177863285114,0.60093448196338928,0.60453718529392719,0.60813988862446533,0.61174259195500325,0.61534529528554138,0.6189479986160793,0.62255070194661744,0.62615340527715535,0.62975610860769349,0.6333588119382314,0.63696151526876954,0.64056421859930768,0.64416692192984559,0.64776962526038351,0.65137232859092165,0.65497503192145956,0.6585777352519977,0.66218043858253584,0.66578314191307375,0.66938584524361189,0.6729885485741498,0.67659125190468794,0.68019395523522608,0.68379665856576399,0.68739936189630191],[0.57523522999601462,0.57883793332655276,0.58244063665709067,0.58604333998762881,0.58964604331816695,0.59324874664870486,0.59685144997924278,0.60045415330978091,0.60405685664031905,0.60765955997085697,0.6112622633013951,0.61486496663193302,0.61846766996247116,0.62207037329300907,0.62567307662354721,0.62927577995408512,0.63287848328462326,0.63648118661516118,0.64008388994569931,0.64368659327623745,0.64728929660677537,0.65089199993731328,0.65449470326785142,0.65809740659838956,0.66170010992892747,0.66530281325946539,0.66890551659000352,0.67250821992054166,0.67611092325107958,0.67971362658161749],[0.56754949468133042,0.57115219801186834,0.57475490134240648,0.57835760467294439,0.58196030800348253,0.58556301133402067,0.58916571466455858,0.59276841799509672,0.59637112132563463,0.59997382465617277,0.60357652798671069,0.60717923131724882,0.61078193464778674,0.61438463797832488,0.61798734130886279,0.62159004463940093,0.62519274796993907,0.62879545130047698,0.6323981546310149,0.63600085796155303,0.63960356129209095,0.64320626462262909,0.64680896795316722,0.65041167128370514,0.65401437461424328,0.65761707794478119,0.66121978127531933,0.66482248460585747,0.66842518793639538,0.6720278912669333],[0.55986375936664601,0.56346646269718392,0.56706916602772206,0.57067186935825998,0.57427457268879811,0.57787727601933625,0.58147997934987417,0.5850826826804123,0.58868538601095022,0.59228808934148836,0.59589079267202627,0.59949349600256441,0.60309619933310232,0.60669890266364046,0.61030160599417838,0.61390430932471651,0.61750701265525465,0.62110971598579257,0.62471241931633048,0.62831512264686862,0.63191782597740653,0.63552052930794467,0.63912323263848281,0.64272593596902072,0.64632863929955886,0.64993134263009678,0.65353404596063491,0.65713674929117305,0.66073945262171097,0.66434215595224888],[0.55217802405196159,0.55578072738249973,0.55938343071303764,0.56298613404357578,0.56658883737411392,0.57019154070465183,0.57379424403518975,0.57739694736572789,0.58099965069626602,0.58460235402680394,0.58820505735734208,0.59180776068787999,0.59541046401841813,0.59901316734895604,0.60261587067949418,0.6062185740100321,0.60982127734057023,0.61342398067110815,0.61702668400164629,0.62062938733218442,0.62423209066272234,0.62783479399326025,0.63143749732379839,0.63504020065433653,0.63864290398487444,0.64224560731541236,0.6458483106459505,0.64945101397648863,0.65305371730702655,0.65665642063756446],[0.54449228873727729,0.54809499206781531,0.55169769539835334,0.55530039872889136,0.5589031020594295,0.56250580538996753,0.56610850872050544,0.56971121205104358,0.57331391538158161,0.57691661871211963,0.58051932204265766,0.58412202537319569,0.58772472870373371,0.59132743203427174,0.59493013536480976,0.59853283869534779,0.60213554202588593,0.60573824535642384,0.60934094868696187,0.61294365201750001,0.61654635534803792,0.62014905867857595,0.62375176200911409,0.62735446533965211,0.63095716867019014,0.63455987200072805,0.63816257533126619,0.64176527866180433,0.64536798199234224,0.64897068532288016],[0.53680655342259298,0.54040925675313101,0.54401196008366903,0.54761466341420706,0.5512173667447452,0.55482007007528322,0.55842277340582114,0.56202547673635928,0.5656281800668973,0.56923088339743533,0.57283358672797335,0.57643629005851138,0.58003899338904941,0.58364169671958743,0.58724440005012546,0.59084710338066349,0.59444980671120162,0.59805251004173954,0.60165521337227756,0.6052579167028157,0.60886062003335362,0.61246332336389164,0.61606602669442978,0.61966873002496781,0.62327143335550583,0.62687413668604375,0.63047684001658189,0.63407954334712002,0.63768224667765794,0.64128495000819585],[0.52912081810790867,0.5327235214384467,0.53632622476898473,0.53992892809952275,0.54353163143006089,0.54713433476059892,0.55073703809113683,0.55433974142167497,0.557942444752213,0.56154514808275102,0.56514785141328905,0.56875055474382707,0.5723532580743651,0.57595596140490313,0.57955866473544115,0.58316136806597918,0.58676407139651732,0.59036677472705523,0.59396947805759326,0.5975721813881314,0.60117488471866931,0.60477758804920734,0.60838029137974547,0.6119829947102835,0.61558569804082153,0.61918840137135944,0.62279110470189758,0.62639380803243572,0.62999651136297363,0.63359921469351155],[0.52143508279322426,0.52503778612376228,0.52864048945430031,0.53224319278483834,0.53584589611537647,0.5394485994459145,0.54305130277645242,0.54665400610699055,0.55025670943752858,0.55385941276806661,0.55746211609860463,0.56106481942914266,0.56466752275968068,0.56827022609021871,0.57187292942075674,0.57547563275129476,0.5790783360818329,0.58268103941237082,0.58628374274290884,0.58988644607344698,0.59348914940398489,0.59709185273452292,0.60069455606506106,0.60429725939559908,0.60789996272613711,0.61150266605667503,0.61510536938721316,0.6187080727177513,0.62231077604828922,0.62591347937882713],[0.51374934747853995,0.51735205080907798,0.52095475413961601,0.52455745747015403,0.52816016080069217,0.5317628641312302,0.53536556746176811,0.53896827079230625,0.54257097412284427,0.5461736774533823,0.54977638078392033,0.55337908411445835,0.55698178744499638,0.56058449077553441,0.56418719410607243,0.56778989743661046,0.5713926007671486,0.57499530409768651,0.57859800742822454,0.58220071075876267,0.58580341408930059,0.58940611741983862,0.59300882075037675,0.59661152408091478,0.60021422741145281,0.60381693074199072,0.60741963407252886,0.611022337403067,0.61462504073360491,0.61822774406414283],[0.50606361216385554,0.50966631549439367,0.51326901882493159,0.51687172215546973,0.52047442548600786,0.52407712881654578,0.52767983214708369,0.53128253547762183,0.53488523880815997,0.53848794213869788,0.54209064546923602,0.54569334879977394,0.54929605213031207,0.55289875546084999,0.55650145879138813,0.56010416212192604,0.56370686545246418,0.56730956878300209,0.57091227211354023,0.57451497544407837,0.57811767877461628,0.5817203821051542,0.58532308543569234,0.58892578876623047,0.59252849209676839,0.5961311954273063,0.59973389875784444,0.60333660208838258,0.60693930541892049,0.61054200874945841],[0.49837787684917129,0.50198058017970926,0.50558328351024739,0.50918598684078531,0.51278869017132345,0.51639139350186158,0.5199940968323995,0.52359680016293764,0.52719950349347555,0.53080220682401369,0.5344049101545516,0.53800761348508974,0.54161031681562766,0.54521302014616579,0.54881572347670371,0.55241842680724185,0.55602113013777998,0.5596238334683179,0.56322653679885581,0.56682924012939395,0.57043194345993187,0.57403464679047,0.57763735012100814,0.58124005345154606,0.58484275678208419,0.58844546011262211,0.59204816344316025,0.59565086677369838,0.5992535701042363,0.60285627343477421],[0.49069214153448698,0.49429484486502501,0.49789754819556303,0.50150025152610112,0.50510295485663925,0.50870565818717717,0.51230836151771508,0.51591106484825322,0.51951376817879136,0.52311647150932927,0.52671917483986741,0.53032187817040533,0.53392458150094346,0.53752728483148138,0.54112998816201952,0.54473269149255743,0.54833539482309557,0.55193809815363348,0.55554080148417162,0.55914350481470976,0.56274620814524767,0.56634891147578559,0.56995161480632373,0.57355431813686186,0.57715702146739978,0.58075972479793769,0.58436242812847583,0.58796513145901397,0.59156783478955188,0.5951705381200898],[0.48300640621980256,0.48660910955034059,0.49021181288087862,0.49381451621141664,0.49741721954195478,0.50101992287249275,0.50462262620303067,0.5082253295335688,0.51182803286410694,0.51543073619464486,0.51903343952518299,0.52263614285572091,0.52623884618625905,0.52984154951679696,0.5334442528473351,0.53704695617787301,0.54064965950841115,0.54425236283894907,0.5478550661694872,0.55145776950002534,0.55506047283056326,0.55866317616110117,0.56226587949163931,0.56586858282217745,0.56947128615271536,0.57307398948325328,0.57667669281379141,0.58027939614432955,0.58388209947486747,0.58748480280540538],[0.47532067090511826,0.47892337423565629,0.48252607756619431,0.48612878089673234,0.48973148422727047,0.4933341875578085,0.49693689088834642,0.50053959421888461,0.50414229754942252,0.50774500087996066,0.51134770421049858,0.51495040754103671,0.51855311087157463,0.52215581420211277,0.52575851753265068,0.52936122086318882,0.53296392419372696,0.53656662752426487,0.54016933085480279,0.54377203418534092,0.54737473751587884,0.55097744084641698,0.55458014417695511,0.55818284750749303,0.56178555083803117,0.56538825416856908,0.56899095749910722,0.57259366082964536,0.57619636416018327,0.57979906749072119],[0.4676349355904339,0.47123763892097192,0.47484034225150995,0.47844304558204798,0.48204574891258611,0.48564845224312414,0.48925115557366206,0.49285385890420019,0.49645656223473822,0.50005926556527625,0.50366196889581427,0.5072646722263523,0.51086737555689032,0.51447007888742835,0.51807278221796638,0.5216754855485044,0.52527818887904254,0.52888089220958046,0.53248359554011848,0.53608629887065662,0.53968900220119453,0.54329170553173256,0.5468944088622707,0.55049711219280872,0.55409981552334675,0.55770251885388467,0.5613052221844228,0.56490792551496094,0.56851062884549886,0.57211333217603677],[0.45994920027574959,0.46355190360628762,0.46715460693682564,0.47075731026736367,0.47436001359790181,0.47796271692843983,0.48156542025897775,0.48516812358951589,0.48877082692005391,0.49237353025059194,0.49597623358112997,0.49957893691166799,0.50318164024220602,0.50678434357274404,0.51038704690328207,0.5139897502338201,0.51759245356435823,0.52119515689489615,0.52479786022543418,0.52840056355597231,0.53200326688651023,0.53560597021704826,0.53920867354758639,0.54281137687812442,0.54641408020866244,0.55001678353920036,0.5536194868697385,0.55722219020027663,0.56082489353081455,0.56442759686135247],[0.45226346496106529,0.45586616829160331,0.45946887162214134,0.46307157495267937,0.4666742782832175,0.47027698161375553,0.47387968494429344,0.47748238827483158,0.48108509160536961,0.48468779493590763,0.48829049826644566,0.49189320159698369,0.49549590492752171,0.49909860825805974,0.50270131158859777,0.50630401491913579,0.50990671824967393,0.51350942158021184,0.51711212491074987,0.52071482824128801,0.52431753157182592,0.52792023490236395,0.53152293823290209,0.53512564156344011,0.53872834489397814,0.54233104822451605,0.54593375155505419,0.54953645488559233,0.55313915821613024,0.55674186154666816],[0.44457772964638087,0.4481804329769189,0.45178313630745692,0.45538583963799495,0.45898854296853309,0.46259124629907111,0.46619394962960903,0.46979665296014717,0.47339935629068519,0.47700205962122322,0.48060476295176124,0.48420746628229927,0.4878101696128373,0.49141287294337532,0.49501557627391335,0.49861827960445138,0.50222098293498951,0.50582368626552743,0.50942638959606545,0.51302909292660359,0.51663179625714151,0.52023449958767953,0.52383720291821767,0.5274399062487557,0.53104260957929372,0.53464531290983164,0.53824801624036978,0.54185071957090791,0.54545342290144583,0.54905612623198374]],"type":"surface","x":[48.200000000000003,48.489655172413798,48.779310344827586,49.068965517241381,49.358620689655176,49.648275862068971,49.937931034482759,50.227586206896554,50.517241379310349,50.806896551724144,51.096551724137932,51.386206896551727,51.675862068965522,51.96551724137931,52.255172413793105,52.5448275862069,52.834482758620695,53.124137931034483,53.413793103448278,53.703448275862073,53.993103448275861,54.282758620689656,54.572413793103451,54.862068965517246,55.151724137931041,55.441379310344828,55.731034482758623,56.020689655172418,56.310344827586206,56.600000000000001],"y":[8.9758830607616993,9.2585316447254069,9.5411802286891145,9.8238288126528204,10.106477396616528,10.389125980580236,10.671774564543943,10.954423148507651,11.237071732471357,11.519720316435064,11.802368900398772,12.08501748436248,12.367666068326187,12.650314652289893,12.932963236253602,13.215611820217308,13.498260404181016,13.780908988144724,14.063557572108429,14.346206156072139,14.628854740035845,14.911503323999552,15.19415190796326,15.476800491926966,15.759449075890675,16.042097659854381,16.32474624381809,16.607394827781796,16.890043411745502,17.172691995709211],"opacity":0.59999999999999998,"colorscale":[["0","#6495ED"],["1","#6495ED"]],"showscale":false,"name":"Regression Plane","contours":{"z":{"show":true,"width":1,"color":"white","highlight":false}},"inherit":true},"916c7a6e25e7":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"y":{},"z":{},"type":"scatter3d","mode":"markers","marker":{"size":5,"color":"#1E3A8A","symbol":"circle","line":{"color":"white","width":1}},"name":"Observed","inherit":true},"916c10f33d0":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"y":{},"z":{},"type":"scatter3d","mode":"markers","marker":{"size":4,"color":"#B22222","symbol":"diamond"},"name":"Predicted","inherit":true},"916c10f33d0.1":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.5,51.5],"y":[8.9758830607616993,8.9758830607616993],"z":[0.81999999999999995,0.70850913814514216],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":true,"name":"Residuals","inherit":true},"916c10f33d0.2":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[48.600000000000001,48.600000000000001],"y":[9.2600824638709973,9.2600824638709973],"z":[0.79000000000000004,0.66471131057230315],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.3":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51,51],"y":[9.3029195532692768,9.3029195532692768],"z":[0.78000000000000003,0.69339746170747274],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.4":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[53,53],"y":[9.4270633554874692,9.4270633554874692],"z":[0.79000000000000004,0.71489757190455328],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.5":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.200000000000003,51.200000000000003],"y":[9.5680148162479988,9.5680148162479988],"z":[0.75,0.6886766143746772],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.6":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.600000000000001,51.600000000000001],"y":[9.4955193142098455,9.4955193142098455],"z":[0.79000000000000004,0.69562306227139725],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.7":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[53.899999999999999,53.899999999999999],"y":[9.8362788028426777,9.8362788028426777],"z":[0.72999999999999998,0.71496436450215684],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.8":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.799999999999997,51.799999999999997],"y":[10.038892189542331,10.038892189542331],"z":[0.65000000000000002,0.68333533438834237],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.9":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[50.100000000000001,50.100000000000001],"y":[10.229187692175429,10.229187692175429],"z":[0.65000000000000002,0.6570164119599794],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.10":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[50.899999999999999,50.899999999999999],"y":[10.581521095286025,10.581521095286025],"z":[0.58999999999999997,0.65738614161697928],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.11":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.100000000000001,51.100000000000001],"y":[10.785186839640664,10.785186839640664],"z":[0.62,0.65433567597876818],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.12":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.299999999999997,51.299999999999997],"y":[11.424094251263613,11.424094251263613],"z":[0.48999999999999999,0.63945018818818822],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.13":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.5,51.5],"y":[11.346870880640147,11.346870880640147],"z":[0.48999999999999999,0.64403761466400544],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.14":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[50.700000000000003,50.700000000000003],"y":[11.48246625748552,11.48246625748552],"z":[0.56999999999999995,0.63040020327101653],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.15":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[48.200000000000003,48.200000000000003],"y":[10.976782033219948,10.976782033219948],"z":[0.53000000000000003,0.61305592733451353],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.16":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[52.200000000000003,52.200000000000003],"y":[11.32779998084354,11.32779998084354],"z":[0.56999999999999995,0.65326272058514812],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.17":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[53.799999999999997,53.799999999999997],"y":[11.516917486239766,11.516917486239766],"z":[0.58999999999999997,0.66802091444310019],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.18":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[49.399999999999999,49.399999999999999],"y":[12.261507352418274,12.261507352418274],"z":[0.53000000000000003,0.59304736613148901],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.19":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[50.600000000000001,50.600000000000001],"y":[12.474571898565181,12.474571898565181],"z":[0.52000000000000002,0.60217923412608887],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true},"916c10f33d0.20":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":[51.100000000000001,51.100000000000001],"y":[12.770249444793158,12.770249444793158],"z":[0.63,0.60035816952064702],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"inherit":true}},"layout":{"margin":{"b":0,"l":0,"t":40,"r":0},"title":{"text":"Multiple Regression: Turnout Projected onto Temperature+GDP Space","font":{"size":14}},"scene":{"xaxis":{"title":"Temperature"},"yaxis":{"title":"GDP"},"zaxis":{"title":"Turnout"},"camera":{"eye":{"x":1.5,"y":-1.5,"z":1}},"aspectmode":"cube"},"hovermode":"closest","showlegend":true},"source":"A","config":{"modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"data":[{"colorbar":{"title":"Turnout<br />predict(model)","ticklen":2},"colorscale":[["0","#6495ED"],["1","#6495ED"]],"showscale":false,"z":[[0.66746405377222673,0.67106675710276475,0.67466946043330278,0.67827216376384081,0.68187486709437894,0.68547757042491697,0.68908027375545489,0.69268297708599302,0.69628568041653105,0.69988838374706908,0.7034910870776071,0.70709379040814513,0.71069649373868315,0.71429919706922118,0.71790190039975921,0.72150460373029723,0.72510730706083537,0.72871001039137329,0.73231271372191131,0.73591541705244945,0.73951812038298737,0.74312082371352539,0.74672352704406353,0.75032623037460155,0.75392893370513958,0.7575316370356775,0.76113434036621563,0.76473704369675377,0.76833974702729169,0.7719424503578296],[0.65977831845754231,0.66338102178808045,0.66698372511861836,0.6705864284491565,0.67418913177969464,0.67779183511023255,0.68139453844077047,0.68499724177130861,0.68859994510184674,0.69220264843238466,0.6958053517629228,0.69940805509346071,0.70301075842399885,0.70661346175453676,0.7102161650850749,0.71381886841561282,0.71742157174615095,0.72102427507668887,0.72462697840722701,0.72822968173776514,0.73183238506830306,0.73543508839884097,0.73903779172937911,0.74264049505991725,0.74624319839045516,0.74984590172099308,0.75344860505153122,0.75705130838206935,0.76065401171260727,0.76425671504314519],[0.65209258314285801,0.65569528647339603,0.65929798980393406,0.66290069313447209,0.66650339646501022,0.67010609979554825,0.67370880312608616,0.6773115064566243,0.68091420978716233,0.68451691311770035,0.68811961644823838,0.69172231977877641,0.69532502310931443,0.69892772643985246,0.70253042977039049,0.70613313310092851,0.70973583643146665,0.71333853976200456,0.71694124309254259,0.72054394642308073,0.72414664975361864,0.72774935308415667,0.73135205641469481,0.73495475974523283,0.73855746307577086,0.74216016640630877,0.74576286973684691,0.74936557306738505,0.75296827639792296,0.75657097972846088],[0.6444068478281737,0.64800955115871184,0.65161225448924975,0.65521495781978789,0.65881766115032603,0.66242036448086394,0.66602306781140186,0.66962577114194,0.67322847447247813,0.67683117780301605,0.68043388113355419,0.6840365844640921,0.68763928779463024,0.69124199112516815,0.69484469445570629,0.69844739778624421,0.70205010111678234,0.70565280444732026,0.7092555077778584,0.71285821110839653,0.71646091443893445,0.72006361776947236,0.7236663211000105,0.72726902443054864,0.73087172776108655,0.73447443109162447,0.73807713442216261,0.74167983775270074,0.74528254108323866,0.74888524441377657],[0.6367211125134894,0.64032381584402742,0.64392651917456545,0.64752922250510347,0.65113192583564161,0.65473462916617964,0.65833733249671755,0.66194003582725569,0.66554273915779372,0.66914544248833174,0.67274814581886977,0.6763508491494078,0.67995355247994582,0.68355625581048385,0.68715895914102187,0.6907616624715599,0.69436436580209804,0.69796706913263595,0.70156977246317398,0.70517247579371212,0.70877517912425003,0.71237788245478806,0.7159805857853262,0.71958328911586422,0.72318599244640225,0.72678869577694016,0.7303913991074783,0.73399410243801644,0.73759680576855435,0.74119950909909227],[0.62903537719880509,0.63263808052934301,0.63624078385988114,0.63984348719041906,0.6434461905209572,0.64704889385149533,0.65065159718203325,0.65425430051257139,0.6578570038431093,0.66145970717364744,0.66506241050418535,0.66866511383472349,0.67226781716526141,0.67587052049579954,0.67947322382633746,0.6830759271568756,0.68667863048741373,0.69028133381795165,0.69388403714848956,0.6974867404790277,0.70108944380956562,0.70469214714010375,0.70829485047064189,0.71189755380117981,0.71550025713171794,0.71910296046225586,0.722705663792794,0.72630836712333213,0.72991107045387005,0.73351377378440796],[0.62134964188412067,0.6249523452146587,0.62855504854519673,0.63215775187573475,0.63576045520627289,0.63936315853681092,0.64296586186734883,0.64656856519788697,0.65017126852842499,0.65377397185896302,0.65737667518950105,0.66097937852003907,0.6645820818505771,0.66818478518111513,0.67178748851165315,0.67539019184219118,0.67899289517272932,0.68259559850326723,0.68619830183380526,0.68980100516434339,0.69340370849488131,0.69700641182541934,0.70060911515595747,0.7042118184864955,0.70781452181703353,0.71141722514757144,0.71501992847810958,0.71862263180864772,0.72222533513918563,0.72582803846972355],[0.61366390656943626,0.61726660989997439,0.62086931323051231,0.62447201656105045,0.62807471989158858,0.6316774232221265,0.63528012655266441,0.63888282988320255,0.64248553321374069,0.6460882365442786,0.64969093987481674,0.65329364320535466,0.65689634653589279,0.66049904986643071,0.66410175319696885,0.66770445652750676,0.6713071598580449,0.67490986318858281,0.67851256651912095,0.68211526984965909,0.685717973180197,0.68932067651073492,0.69292337984127306,0.69652608317181119,0.70012878650234911,0.70373148983288702,0.70733419316342516,0.7109368964939633,0.71453959982450121,0.71814230315503913],[0.60597817125475206,0.60958087458529009,0.61318357791582812,0.61678628124636614,0.62038898457690428,0.62399168790744231,0.62759439123798022,0.63119709456851836,0.63479979789905638,0.63840250122959441,0.64200520456013244,0.64560790789067046,0.64921061122120849,0.65281331455174652,0.65641601788228454,0.66001872121282257,0.66362142454336071,0.66722412787389862,0.67082683120443665,0.67442953453497478,0.6780322378655127,0.68163494119605073,0.68523764452658886,0.68884034785712689,0.69244305118766492,0.69604575451820283,0.69964845784874097,0.70325116117927911,0.70685386450981702,0.71045656784035494],[0.59829243594006765,0.60189513927060578,0.6054978426011437,0.60910054593168184,0.61270324926221997,0.61630595259275789,0.6199086559232958,0.62351135925383394,0.62711406258437208,0.63071676591490999,0.63431946924544813,0.63792217257598605,0.64152487590652418,0.6451275792370621,0.64873028256760024,0.65233298589813815,0.65593568922867629,0.6595383925592142,0.66314109588975234,0.66674379922029048,0.67034650255082839,0.67394920588136631,0.67755190921190445,0.68115461254244258,0.6847573158729805,0.68836001920351841,0.69196272253405655,0.69556542586459469,0.6991681291951326,0.70277083252567052],[0.59060670062538334,0.59420940395592137,0.59781210728645939,0.60141481061699742,0.60501751394753556,0.60862021727807358,0.6122229206086115,0.61582562393914964,0.61942832726968766,0.62303103060022569,0.62663373393076371,0.63023643726130174,0.63383914059183977,0.63744184392237779,0.64104454725291582,0.64464725058345385,0.64824995391399198,0.6518526572445299,0.65545536057506792,0.65905806390560606,0.66266076723614398,0.666263470566682,0.66986617389722014,0.67346887722775817,0.67707158055829619,0.68067428388883411,0.68427698721937225,0.68787969054991038,0.6914823938804483,0.69508509721098621],[0.58292096531069904,0.58652366864123695,0.59012637197177509,0.593729075302313,0.59733177863285114,0.60093448196338928,0.60453718529392719,0.60813988862446533,0.61174259195500325,0.61534529528554138,0.6189479986160793,0.62255070194661744,0.62615340527715535,0.62975610860769349,0.6333588119382314,0.63696151526876954,0.64056421859930768,0.64416692192984559,0.64776962526038351,0.65137232859092165,0.65497503192145956,0.6585777352519977,0.66218043858253584,0.66578314191307375,0.66938584524361189,0.6729885485741498,0.67659125190468794,0.68019395523522608,0.68379665856576399,0.68739936189630191],[0.57523522999601462,0.57883793332655276,0.58244063665709067,0.58604333998762881,0.58964604331816695,0.59324874664870486,0.59685144997924278,0.60045415330978091,0.60405685664031905,0.60765955997085697,0.6112622633013951,0.61486496663193302,0.61846766996247116,0.62207037329300907,0.62567307662354721,0.62927577995408512,0.63287848328462326,0.63648118661516118,0.64008388994569931,0.64368659327623745,0.64728929660677537,0.65089199993731328,0.65449470326785142,0.65809740659838956,0.66170010992892747,0.66530281325946539,0.66890551659000352,0.67250821992054166,0.67611092325107958,0.67971362658161749],[0.56754949468133042,0.57115219801186834,0.57475490134240648,0.57835760467294439,0.58196030800348253,0.58556301133402067,0.58916571466455858,0.59276841799509672,0.59637112132563463,0.59997382465617277,0.60357652798671069,0.60717923131724882,0.61078193464778674,0.61438463797832488,0.61798734130886279,0.62159004463940093,0.62519274796993907,0.62879545130047698,0.6323981546310149,0.63600085796155303,0.63960356129209095,0.64320626462262909,0.64680896795316722,0.65041167128370514,0.65401437461424328,0.65761707794478119,0.66121978127531933,0.66482248460585747,0.66842518793639538,0.6720278912669333],[0.55986375936664601,0.56346646269718392,0.56706916602772206,0.57067186935825998,0.57427457268879811,0.57787727601933625,0.58147997934987417,0.5850826826804123,0.58868538601095022,0.59228808934148836,0.59589079267202627,0.59949349600256441,0.60309619933310232,0.60669890266364046,0.61030160599417838,0.61390430932471651,0.61750701265525465,0.62110971598579257,0.62471241931633048,0.62831512264686862,0.63191782597740653,0.63552052930794467,0.63912323263848281,0.64272593596902072,0.64632863929955886,0.64993134263009678,0.65353404596063491,0.65713674929117305,0.66073945262171097,0.66434215595224888],[0.55217802405196159,0.55578072738249973,0.55938343071303764,0.56298613404357578,0.56658883737411392,0.57019154070465183,0.57379424403518975,0.57739694736572789,0.58099965069626602,0.58460235402680394,0.58820505735734208,0.59180776068787999,0.59541046401841813,0.59901316734895604,0.60261587067949418,0.6062185740100321,0.60982127734057023,0.61342398067110815,0.61702668400164629,0.62062938733218442,0.62423209066272234,0.62783479399326025,0.63143749732379839,0.63504020065433653,0.63864290398487444,0.64224560731541236,0.6458483106459505,0.64945101397648863,0.65305371730702655,0.65665642063756446],[0.54449228873727729,0.54809499206781531,0.55169769539835334,0.55530039872889136,0.5589031020594295,0.56250580538996753,0.56610850872050544,0.56971121205104358,0.57331391538158161,0.57691661871211963,0.58051932204265766,0.58412202537319569,0.58772472870373371,0.59132743203427174,0.59493013536480976,0.59853283869534779,0.60213554202588593,0.60573824535642384,0.60934094868696187,0.61294365201750001,0.61654635534803792,0.62014905867857595,0.62375176200911409,0.62735446533965211,0.63095716867019014,0.63455987200072805,0.63816257533126619,0.64176527866180433,0.64536798199234224,0.64897068532288016],[0.53680655342259298,0.54040925675313101,0.54401196008366903,0.54761466341420706,0.5512173667447452,0.55482007007528322,0.55842277340582114,0.56202547673635928,0.5656281800668973,0.56923088339743533,0.57283358672797335,0.57643629005851138,0.58003899338904941,0.58364169671958743,0.58724440005012546,0.59084710338066349,0.59444980671120162,0.59805251004173954,0.60165521337227756,0.6052579167028157,0.60886062003335362,0.61246332336389164,0.61606602669442978,0.61966873002496781,0.62327143335550583,0.62687413668604375,0.63047684001658189,0.63407954334712002,0.63768224667765794,0.64128495000819585],[0.52912081810790867,0.5327235214384467,0.53632622476898473,0.53992892809952275,0.54353163143006089,0.54713433476059892,0.55073703809113683,0.55433974142167497,0.557942444752213,0.56154514808275102,0.56514785141328905,0.56875055474382707,0.5723532580743651,0.57595596140490313,0.57955866473544115,0.58316136806597918,0.58676407139651732,0.59036677472705523,0.59396947805759326,0.5975721813881314,0.60117488471866931,0.60477758804920734,0.60838029137974547,0.6119829947102835,0.61558569804082153,0.61918840137135944,0.62279110470189758,0.62639380803243572,0.62999651136297363,0.63359921469351155],[0.52143508279322426,0.52503778612376228,0.52864048945430031,0.53224319278483834,0.53584589611537647,0.5394485994459145,0.54305130277645242,0.54665400610699055,0.55025670943752858,0.55385941276806661,0.55746211609860463,0.56106481942914266,0.56466752275968068,0.56827022609021871,0.57187292942075674,0.57547563275129476,0.5790783360818329,0.58268103941237082,0.58628374274290884,0.58988644607344698,0.59348914940398489,0.59709185273452292,0.60069455606506106,0.60429725939559908,0.60789996272613711,0.61150266605667503,0.61510536938721316,0.6187080727177513,0.62231077604828922,0.62591347937882713],[0.51374934747853995,0.51735205080907798,0.52095475413961601,0.52455745747015403,0.52816016080069217,0.5317628641312302,0.53536556746176811,0.53896827079230625,0.54257097412284427,0.5461736774533823,0.54977638078392033,0.55337908411445835,0.55698178744499638,0.56058449077553441,0.56418719410607243,0.56778989743661046,0.5713926007671486,0.57499530409768651,0.57859800742822454,0.58220071075876267,0.58580341408930059,0.58940611741983862,0.59300882075037675,0.59661152408091478,0.60021422741145281,0.60381693074199072,0.60741963407252886,0.611022337403067,0.61462504073360491,0.61822774406414283],[0.50606361216385554,0.50966631549439367,0.51326901882493159,0.51687172215546973,0.52047442548600786,0.52407712881654578,0.52767983214708369,0.53128253547762183,0.53488523880815997,0.53848794213869788,0.54209064546923602,0.54569334879977394,0.54929605213031207,0.55289875546084999,0.55650145879138813,0.56010416212192604,0.56370686545246418,0.56730956878300209,0.57091227211354023,0.57451497544407837,0.57811767877461628,0.5817203821051542,0.58532308543569234,0.58892578876623047,0.59252849209676839,0.5961311954273063,0.59973389875784444,0.60333660208838258,0.60693930541892049,0.61054200874945841],[0.49837787684917129,0.50198058017970926,0.50558328351024739,0.50918598684078531,0.51278869017132345,0.51639139350186158,0.5199940968323995,0.52359680016293764,0.52719950349347555,0.53080220682401369,0.5344049101545516,0.53800761348508974,0.54161031681562766,0.54521302014616579,0.54881572347670371,0.55241842680724185,0.55602113013777998,0.5596238334683179,0.56322653679885581,0.56682924012939395,0.57043194345993187,0.57403464679047,0.57763735012100814,0.58124005345154606,0.58484275678208419,0.58844546011262211,0.59204816344316025,0.59565086677369838,0.5992535701042363,0.60285627343477421],[0.49069214153448698,0.49429484486502501,0.49789754819556303,0.50150025152610112,0.50510295485663925,0.50870565818717717,0.51230836151771508,0.51591106484825322,0.51951376817879136,0.52311647150932927,0.52671917483986741,0.53032187817040533,0.53392458150094346,0.53752728483148138,0.54112998816201952,0.54473269149255743,0.54833539482309557,0.55193809815363348,0.55554080148417162,0.55914350481470976,0.56274620814524767,0.56634891147578559,0.56995161480632373,0.57355431813686186,0.57715702146739978,0.58075972479793769,0.58436242812847583,0.58796513145901397,0.59156783478955188,0.5951705381200898],[0.48300640621980256,0.48660910955034059,0.49021181288087862,0.49381451621141664,0.49741721954195478,0.50101992287249275,0.50462262620303067,0.5082253295335688,0.51182803286410694,0.51543073619464486,0.51903343952518299,0.52263614285572091,0.52623884618625905,0.52984154951679696,0.5334442528473351,0.53704695617787301,0.54064965950841115,0.54425236283894907,0.5478550661694872,0.55145776950002534,0.55506047283056326,0.55866317616110117,0.56226587949163931,0.56586858282217745,0.56947128615271536,0.57307398948325328,0.57667669281379141,0.58027939614432955,0.58388209947486747,0.58748480280540538],[0.47532067090511826,0.47892337423565629,0.48252607756619431,0.48612878089673234,0.48973148422727047,0.4933341875578085,0.49693689088834642,0.50053959421888461,0.50414229754942252,0.50774500087996066,0.51134770421049858,0.51495040754103671,0.51855311087157463,0.52215581420211277,0.52575851753265068,0.52936122086318882,0.53296392419372696,0.53656662752426487,0.54016933085480279,0.54377203418534092,0.54737473751587884,0.55097744084641698,0.55458014417695511,0.55818284750749303,0.56178555083803117,0.56538825416856908,0.56899095749910722,0.57259366082964536,0.57619636416018327,0.57979906749072119],[0.4676349355904339,0.47123763892097192,0.47484034225150995,0.47844304558204798,0.48204574891258611,0.48564845224312414,0.48925115557366206,0.49285385890420019,0.49645656223473822,0.50005926556527625,0.50366196889581427,0.5072646722263523,0.51086737555689032,0.51447007888742835,0.51807278221796638,0.5216754855485044,0.52527818887904254,0.52888089220958046,0.53248359554011848,0.53608629887065662,0.53968900220119453,0.54329170553173256,0.5468944088622707,0.55049711219280872,0.55409981552334675,0.55770251885388467,0.5613052221844228,0.56490792551496094,0.56851062884549886,0.57211333217603677],[0.45994920027574959,0.46355190360628762,0.46715460693682564,0.47075731026736367,0.47436001359790181,0.47796271692843983,0.48156542025897775,0.48516812358951589,0.48877082692005391,0.49237353025059194,0.49597623358112997,0.49957893691166799,0.50318164024220602,0.50678434357274404,0.51038704690328207,0.5139897502338201,0.51759245356435823,0.52119515689489615,0.52479786022543418,0.52840056355597231,0.53200326688651023,0.53560597021704826,0.53920867354758639,0.54281137687812442,0.54641408020866244,0.55001678353920036,0.5536194868697385,0.55722219020027663,0.56082489353081455,0.56442759686135247],[0.45226346496106529,0.45586616829160331,0.45946887162214134,0.46307157495267937,0.4666742782832175,0.47027698161375553,0.47387968494429344,0.47748238827483158,0.48108509160536961,0.48468779493590763,0.48829049826644566,0.49189320159698369,0.49549590492752171,0.49909860825805974,0.50270131158859777,0.50630401491913579,0.50990671824967393,0.51350942158021184,0.51711212491074987,0.52071482824128801,0.52431753157182592,0.52792023490236395,0.53152293823290209,0.53512564156344011,0.53872834489397814,0.54233104822451605,0.54593375155505419,0.54953645488559233,0.55313915821613024,0.55674186154666816],[0.44457772964638087,0.4481804329769189,0.45178313630745692,0.45538583963799495,0.45898854296853309,0.46259124629907111,0.46619394962960903,0.46979665296014717,0.47339935629068519,0.47700205962122322,0.48060476295176124,0.48420746628229927,0.4878101696128373,0.49141287294337532,0.49501557627391335,0.49861827960445138,0.50222098293498951,0.50582368626552743,0.50942638959606545,0.51302909292660359,0.51663179625714151,0.52023449958767953,0.52383720291821767,0.5274399062487557,0.53104260957929372,0.53464531290983164,0.53824801624036978,0.54185071957090791,0.54545342290144583,0.54905612623198374]],"type":"surface","x":[48.200000000000003,48.489655172413798,48.779310344827586,49.068965517241381,49.358620689655176,49.648275862068971,49.937931034482759,50.227586206896554,50.517241379310349,50.806896551724144,51.096551724137932,51.386206896551727,51.675862068965522,51.96551724137931,52.255172413793105,52.5448275862069,52.834482758620695,53.124137931034483,53.413793103448278,53.703448275862073,53.993103448275861,54.282758620689656,54.572413793103451,54.862068965517246,55.151724137931041,55.441379310344828,55.731034482758623,56.020689655172418,56.310344827586206,56.600000000000001],"y":[8.9758830607616993,9.2585316447254069,9.5411802286891145,9.8238288126528204,10.106477396616528,10.389125980580236,10.671774564543943,10.954423148507651,11.237071732471357,11.519720316435064,11.802368900398772,12.08501748436248,12.367666068326187,12.650314652289893,12.932963236253602,13.215611820217308,13.498260404181016,13.780908988144724,14.063557572108429,14.346206156072139,14.628854740035845,14.911503323999552,15.19415190796326,15.476800491926966,15.759449075890675,16.042097659854381,16.32474624381809,16.607394827781796,16.890043411745502,17.172691995709211],"opacity":0.59999999999999998,"name":"Regression Plane","contours":{"z":{"show":true,"width":1,"color":"white","highlight":false}},"frame":null},{"x":[51.5,48.600000000000001,51,53,51.200000000000003,51.600000000000001,53.899999999999999,51.799999999999997,50.100000000000001,50.899999999999999,51.100000000000001,51.299999999999997,51.5,50.700000000000003,48.200000000000003,52.200000000000003,53.799999999999997,49.399999999999999,50.600000000000001,51.100000000000001,51.5,51.899999999999999,48.299999999999997,50.299999999999997,52.299999999999997,51.600000000000001,52.799999999999997,51,53.299999999999997,53.600000000000001,54.299999999999997,53.700000000000003,52.100000000000001,51.899999999999999,56.600000000000001,56.200000000000003,55.700000000000003,55.5],"y":[8.9758830607616993,9.2600824638709973,9.3029195532692768,9.4270633554874692,9.5680148162479988,9.4955193142098455,9.8362788028426777,10.038892189542331,10.229187692175429,10.581521095286025,10.785186839640664,11.424094251263613,11.346870880640147,11.48246625748552,10.976782033219948,11.32779998084354,11.516917486239766,12.261507352418274,12.474571898565181,12.770249444793158,12.96734565513772,13.152504534316316,13.384419902217138,13.702005857167453,14.008607187926188,14.393807896845278,14.820544499672819,15.143115922735484,15.400860674869284,15.649051561207283,15.871811407202468,16.099626134674658,16.278001168467942,16.503802714776466,16.592390372783168,16.734682092250651,16.89518123341934,17.172691995709211],"z":[0.81999999999999995,0.79000000000000004,0.78000000000000003,0.79000000000000004,0.75,0.79000000000000004,0.72999999999999998,0.65000000000000002,0.65000000000000002,0.58999999999999997,0.62,0.48999999999999999,0.48999999999999999,0.56999999999999995,0.53000000000000003,0.56999999999999995,0.58999999999999997,0.53000000000000003,0.52000000000000002,0.63,0.59999999999999998,0.64000000000000001,0.63,0.63,0.56999999999999995,0.56000000000000005,0.55000000000000004,0.55000000000000004,0.51000000000000001,0.56000000000000005,0.5,0.52000000000000002,0.56999999999999995,0.57999999999999996,0.55000000000000004,0.56000000000000005,0.63,0.57999999999999996],"type":"scatter3d","mode":"markers","marker":{"color":"#1E3A8A","size":5,"symbol":"circle","line":{"color":"white","width":1}},"name":"Observed","error_y":{"color":"rgba(255,127,14,1)"},"error_x":{"color":"rgba(255,127,14,1)"},"line":{"color":"rgba(255,127,14,1)"},"frame":null},{"x":[51.5,48.600000000000001,51,53,51.200000000000003,51.600000000000001,53.899999999999999,51.799999999999997,50.100000000000001,50.899999999999999,51.100000000000001,51.299999999999997,51.5,50.700000000000003,48.200000000000003,52.200000000000003,53.799999999999997,49.399999999999999,50.600000000000001,51.100000000000001,51.5,51.899999999999999,48.299999999999997,50.299999999999997,52.299999999999997,51.600000000000001,52.799999999999997,51,53.299999999999997,53.600000000000001,54.299999999999997,53.700000000000003,52.100000000000001,51.899999999999999,56.600000000000001,56.200000000000003,55.700000000000003,55.5],"y":[8.9758830607616993,9.2600824638709973,9.3029195532692768,9.4270633554874692,9.5680148162479988,9.4955193142098455,9.8362788028426777,10.038892189542331,10.229187692175429,10.581521095286025,10.785186839640664,11.424094251263613,11.346870880640147,11.48246625748552,10.976782033219948,11.32779998084354,11.516917486239766,12.261507352418274,12.474571898565181,12.770249444793158,12.96734565513772,13.152504534316316,13.384419902217138,13.702005857167453,14.008607187926188,14.393807896845278,14.820544499672819,15.143115922735484,15.400860674869284,15.649051561207283,15.871811407202468,16.099626134674658,16.278001168467942,16.503802714776466,16.592390372783168,16.734682092250651,16.89518123341934,17.172691995709211],"z":[0.70850913814514216,0.66471131057230315,0.69339746170747274,0.71489757190455328,0.6886766143746772,0.69562306227139725,0.71496436450215684,0.68333533438834237,0.6570164119599794,0.65738614161697928,0.65433567597876818,0.63945018818818822,0.64403761466400544,0.63040020327101653,0.61305592733451353,0.65326272058514812,0.66802091444310019,0.59304736613148901,0.60217923412608887,0.60035816952064702,0.59997392247685355,0.59991427344242831,0.5488316119857406,0.56507167394994995,0.58161042806709307,0.56242957864188026,0.56575131007481083,0.53459177143286241,0.55619039716760854,0.55317300138982239,0.55582228415613522,0.54216483972769736,0.51741384722655615,0.50878630664211622,0.56483559561387886,0.55599126008013167,0.54540804079745586,0.53537443144101204],"type":"scatter3d","mode":"markers","marker":{"color":"#B22222","size":4,"symbol":"diamond","line":{"color":"rgba(44,160,44,1)"}},"name":"Predicted","error_y":{"color":"rgba(44,160,44,1)"},"error_x":{"color":"rgba(44,160,44,1)"},"line":{"color":"rgba(44,160,44,1)"},"frame":null},{"x":[51.5,51.5],"y":[8.9758830607616993,8.9758830607616993],"z":[0.81999999999999995,0.70850913814514216],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":true,"name":"Residuals","marker":{"color":"rgba(214,39,40,1)","line":{"color":"rgba(214,39,40,1)"}},"error_y":{"color":"rgba(214,39,40,1)"},"error_x":{"color":"rgba(214,39,40,1)"},"frame":null},{"x":[48.600000000000001,48.600000000000001],"y":[9.2600824638709973,9.2600824638709973],"z":[0.79000000000000004,0.66471131057230315],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(148,103,189,1)","line":{"color":"rgba(148,103,189,1)"}},"error_y":{"color":"rgba(148,103,189,1)"},"error_x":{"color":"rgba(148,103,189,1)"},"frame":null},{"x":[51,51],"y":[9.3029195532692768,9.3029195532692768],"z":[0.78000000000000003,0.69339746170747274],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(140,86,75,1)","line":{"color":"rgba(140,86,75,1)"}},"error_y":{"color":"rgba(140,86,75,1)"},"error_x":{"color":"rgba(140,86,75,1)"},"frame":null},{"x":[53,53],"y":[9.4270633554874692,9.4270633554874692],"z":[0.79000000000000004,0.71489757190455328],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(227,119,194,1)","line":{"color":"rgba(227,119,194,1)"}},"error_y":{"color":"rgba(227,119,194,1)"},"error_x":{"color":"rgba(227,119,194,1)"},"frame":null},{"x":[51.200000000000003,51.200000000000003],"y":[9.5680148162479988,9.5680148162479988],"z":[0.75,0.6886766143746772],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(127,127,127,1)","line":{"color":"rgba(127,127,127,1)"}},"error_y":{"color":"rgba(127,127,127,1)"},"error_x":{"color":"rgba(127,127,127,1)"},"frame":null},{"x":[51.600000000000001,51.600000000000001],"y":[9.4955193142098455,9.4955193142098455],"z":[0.79000000000000004,0.69562306227139725],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(188,189,34,1)","line":{"color":"rgba(188,189,34,1)"}},"error_y":{"color":"rgba(188,189,34,1)"},"error_x":{"color":"rgba(188,189,34,1)"},"frame":null},{"x":[53.899999999999999,53.899999999999999],"y":[9.8362788028426777,9.8362788028426777],"z":[0.72999999999999998,0.71496436450215684],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(23,190,207,1)","line":{"color":"rgba(23,190,207,1)"}},"error_y":{"color":"rgba(23,190,207,1)"},"error_x":{"color":"rgba(23,190,207,1)"},"frame":null},{"x":[51.799999999999997,51.799999999999997],"y":[10.038892189542331,10.038892189542331],"z":[0.65000000000000002,0.68333533438834237],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(31,119,180,1)","line":{"color":"rgba(31,119,180,1)"}},"error_y":{"color":"rgba(31,119,180,1)"},"error_x":{"color":"rgba(31,119,180,1)"},"frame":null},{"x":[50.100000000000001,50.100000000000001],"y":[10.229187692175429,10.229187692175429],"z":[0.65000000000000002,0.6570164119599794],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(255,127,14,1)","line":{"color":"rgba(255,127,14,1)"}},"error_y":{"color":"rgba(255,127,14,1)"},"error_x":{"color":"rgba(255,127,14,1)"},"frame":null},{"x":[50.899999999999999,50.899999999999999],"y":[10.581521095286025,10.581521095286025],"z":[0.58999999999999997,0.65738614161697928],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(44,160,44,1)","line":{"color":"rgba(44,160,44,1)"}},"error_y":{"color":"rgba(44,160,44,1)"},"error_x":{"color":"rgba(44,160,44,1)"},"frame":null},{"x":[51.100000000000001,51.100000000000001],"y":[10.785186839640664,10.785186839640664],"z":[0.62,0.65433567597876818],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(214,39,40,1)","line":{"color":"rgba(214,39,40,1)"}},"error_y":{"color":"rgba(214,39,40,1)"},"error_x":{"color":"rgba(214,39,40,1)"},"frame":null},{"x":[51.299999999999997,51.299999999999997],"y":[11.424094251263613,11.424094251263613],"z":[0.48999999999999999,0.63945018818818822],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(148,103,189,1)","line":{"color":"rgba(148,103,189,1)"}},"error_y":{"color":"rgba(148,103,189,1)"},"error_x":{"color":"rgba(148,103,189,1)"},"frame":null},{"x":[51.5,51.5],"y":[11.346870880640147,11.346870880640147],"z":[0.48999999999999999,0.64403761466400544],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(140,86,75,1)","line":{"color":"rgba(140,86,75,1)"}},"error_y":{"color":"rgba(140,86,75,1)"},"error_x":{"color":"rgba(140,86,75,1)"},"frame":null},{"x":[50.700000000000003,50.700000000000003],"y":[11.48246625748552,11.48246625748552],"z":[0.56999999999999995,0.63040020327101653],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(227,119,194,1)","line":{"color":"rgba(227,119,194,1)"}},"error_y":{"color":"rgba(227,119,194,1)"},"error_x":{"color":"rgba(227,119,194,1)"},"frame":null},{"x":[48.200000000000003,48.200000000000003],"y":[10.976782033219948,10.976782033219948],"z":[0.53000000000000003,0.61305592733451353],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(127,127,127,1)","line":{"color":"rgba(127,127,127,1)"}},"error_y":{"color":"rgba(127,127,127,1)"},"error_x":{"color":"rgba(127,127,127,1)"},"frame":null},{"x":[52.200000000000003,52.200000000000003],"y":[11.32779998084354,11.32779998084354],"z":[0.56999999999999995,0.65326272058514812],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(188,189,34,1)","line":{"color":"rgba(188,189,34,1)"}},"error_y":{"color":"rgba(188,189,34,1)"},"error_x":{"color":"rgba(188,189,34,1)"},"frame":null},{"x":[53.799999999999997,53.799999999999997],"y":[11.516917486239766,11.516917486239766],"z":[0.58999999999999997,0.66802091444310019],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(23,190,207,1)","line":{"color":"rgba(23,190,207,1)"}},"error_y":{"color":"rgba(23,190,207,1)"},"error_x":{"color":"rgba(23,190,207,1)"},"frame":null},{"x":[49.399999999999999,49.399999999999999],"y":[12.261507352418274,12.261507352418274],"z":[0.53000000000000003,0.59304736613148901],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(31,119,180,1)","line":{"color":"rgba(31,119,180,1)"}},"error_y":{"color":"rgba(31,119,180,1)"},"error_x":{"color":"rgba(31,119,180,1)"},"frame":null},{"x":[50.600000000000001,50.600000000000001],"y":[12.474571898565181,12.474571898565181],"z":[0.52000000000000002,0.60217923412608887],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(255,127,14,1)","line":{"color":"rgba(255,127,14,1)"}},"error_y":{"color":"rgba(255,127,14,1)"},"error_x":{"color":"rgba(255,127,14,1)"},"frame":null},{"x":[51.100000000000001,51.100000000000001],"y":[12.770249444793158,12.770249444793158],"z":[0.63,0.60035816952064702],"type":"scatter3d","mode":"lines","line":{"color":"gray","width":1.5,"dash":"dash"},"showlegend":false,"name":null,"marker":{"color":"rgba(44,160,44,1)","line":{"color":"rgba(44,160,44,1)"}},"error_y":{"color":"rgba(44,160,44,1)"},"error_x":{"color":"rgba(44,160,44,1)"},"frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

`$$\hat Y = \mathbb{X} \hat\beta$$`

`$$\hat\beta= (\mathbb{X}^T\mathbb{X})^{-1}\mathbb{X}^TY$$`

`$$\hat Y = \mathbb{X} (\mathbb{X}^T\mathbb{X})^{-1}\mathbb{X}^TY$$`

We call `$\mathbb{X} (\mathbb{X}^T\mathbb{X})^{-1}\mathbb{X}^T$` the *projection matrix* (`$\mathbb{P_X}$`) or the *hat matrix* (`$\mathbb{H}$`).

---

One common concern we have in regression is that one or another observation may be throwing the results off (due to measurement error or other idiosyncracies). We can try to operationalize this by looking at how much regression results change if we leave out one observation.

---

Define `$\hat \beta_{-i}$` to be the regression results omitting observation `$i$`. Then, we are interested in cases with a large `$|\hat \beta_{-i} - \hat \beta|$`.

---

When will cases have large scores of `$|\hat \beta_{-i} - \hat \beta|$`?

---

1\. Cases with `$\mathbf{X}_i$` near `$\bar{\mathbf{X}}$` have low *leverage* because regression with an intercept minimizes squared residuals subject to passing through `$(\bar{\mathbf{X}},\bar{\mathbf{y}})$`. Imagine a seesaw pivoted at its center—weights near the pivot have less effect on its tilt than weights at the ends. Similarly, observations near the multidimensional mean provide less 'leverage' to change regression coefficients.

---

2\. The size of the residual in the full model is also a key component of the influence an observation has on the regression. Observations with large residuals are often called *outliers*.

---

We can measure the leverage of an observation as `$h_{ii}$`, which is the `$i$`th diagonal entry in the projection matrix `$\mathbb{P_X}$`.

---

We can just use residuals as measures of outliers, but it won't get us very far because our model is built to minimize them.

---

Instead, we can calculate the leave-one-out prediction error, where we run a regression dropping a case and see how the error looks:

`$$\hat \beta_{-i} = \hat \beta - (\mathbb{X}^T\mathbb{X})^{-1}\mathbf{X}_i \tilde e_{i}$$`
where `$\tilde e_{i} = \frac{\hat e_{i}}{1 - h_{ii}}$`.

---

A common question is how much the regression coefficient(s) change when dropping an observation, which we measure with `$DFBETA_i$`:

`$$\hat \beta - \hat \beta_{-i} = (\mathbb{X}^T\mathbb{X})^{-1}\mathbf{X}_i \tilde e_{i}$$`

---

``` r
turnouttrim <- na.omit(turnout)
turnoutlm <- lm(Turnout ~ Temperature + GDP, data = turnouttrim)
dfbeta(turnoutlm)
```

```
##      (Intercept)   Temperature           GDP
## 1  -0.0354547495  8.320240e-04 -6.045881e-10
## 2   0.3517720750 -6.738982e-03  9.300914e-10
## 3   0.0276483992 -4.287551e-04 -2.640793e-10
## 4  -0.2156248840  4.334440e-03 -1.250548e-09
## 5   0.0043337671  5.194103e-06 -2.831327e-10
## 6  -0.0418004002  9.347027e-04 -5.578496e-10
## 7  -0.2189355904  4.358779e-03 -1.128435e-09
## 8  -0.0103370360  2.206132e-04 -1.026639e-10
## 9   0.0232199873 -4.334897e-04  2.369789e-11
## 10 -0.0082551280  1.379988e-04  4.510268e-11
## 11 -0.0003286742  4.309212e-06  5.724999e-12
## 12  0.0034821259 -1.618035e-04  3.225179e-10
## 13  0.0225963609 -5.354617e-04  3.984230e-10
## 14 -0.0211259560  3.755740e-04  3.963523e-11
## 15 -0.2243833412  4.310089e-03 -6.338325e-10
## 16  0.0364781532 -7.510860e-04  2.694571e-10
## 17  0.0702585219 -1.399843e-03  3.643730e-10
## 18 -0.1278084284  2.429909e-03 -2.838752e-10
## 19 -0.0506879751  9.187643e-04  3.003035e-11
## 20  0.0012316429 -1.845522e-05 -1.277669e-11
## 21  0.0026707660 -6.736015e-05  5.737264e-11
## 22 -0.0070742344  1.505187e-04 -6.505698e-11
## 23  0.0293962186 -5.650572e-04  8.765838e-11
## 24  0.0086766318 -1.621923e-04  1.345977e-11
## 25  0.0292205969 -6.037926e-04  1.992400e-10
## 26  0.0001733888 -3.937453e-05  7.905849e-11
## 27  0.0475260177 -9.670696e-04  2.407704e-10
## 28 -0.0421146396  7.899745e-04 -1.486486e-10
## 29  0.0771053712 -1.555237e-03  2.651505e-10
## 30  0.0352213437 -7.071941e-04  8.765526e-11
## 31  0.1100542420 -2.187261e-03  2.250519e-10
## 32  0.0268843315 -5.453733e-04 -1.200903e-10
## 33 -0.0138853673  2.685754e-04 -1.106134e-10
## 34  0.0143877381 -2.804290e-04  1.091595e-10
## 35  0.0393107276 -7.680867e-04 -1.339142e-11
## 36  0.0028499286 -5.536782e-05 -1.330099e-11
## 37 -0.0120599270  2.128907e-04  8.826479e-10
## 38  0.0825497800 -1.657823e-03  1.467265e-09
```

---

``` r
summary(turnoutlm)
```

```
##
## Call:
## lm(formula = Turnout ~ Temperature + GDP, data = turnouttrim)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.13323 -0.05916 -0.01721  0.02748  0.19650
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)  5.751e-01  5.458e-01   1.054    0.299
## Temperature  9.409e-04  1.066e-02   0.088    0.930
## GDP         -3.525e-09  3.006e-09  -1.173    0.249
##
## Residual standard error: 0.09201 on 35 degrees of freedom
## Multiple R-squared:  0.06614,	Adjusted R-squared:  0.01278
## F-statistic: 1.239 on 2 and 35 DF,  p-value: 0.3019
```

---

``` r
dfbetas_vals <- data.frame(dfbetas(turnoutlm))

# Plot
library(ggplot2)
dfbetasplot <- ggplot(dfbetas_vals) +
  geom_point(aes(x = 1:nrow(dfbetas_vals), y = Temperature)) +
  geom_segment(aes(x = 1:nrow(dfbetas_vals), xend = 1:nrow(dfbetas_vals), y = 0, yend = Temperature),
               color = 'cornflowerblue') +
  geom_hline(yintercept = c(2, -2) / sqrt(nrow(dfbetas_vals)), color = 'salmon') +
  labs(x = 'Observation index', y = 'DFBETAS',
       title = paste0('DFBETAS values for coefficient of ', colnames(dfbetas_vals)[2]),
       subtitle = 'Thresholds are at \u00B1(2\u00F7\u221An)') +
  geom_text(aes(x = 1:nrow(dfbetas_vals), y = ifelse(Temperature > 0, Temperature + .05, Temperature - .05),
                label = ifelse(abs(Temperature) > (2/sqrt(nrow(dfbetas_vals))),
                               paste0(round(Temperature, digits = 2),
                               ' (', 1:nrow(dfbetas_vals), ')'), '')))
```

---

---

``` r
print(turnouttrim,n=15)
```

```
## # A tibble: 38 × 4
##     Year Turnout Temperature   GDP
##    <dbl>   <dbl>       <dbl> <dbl>
##  1  1876    0.82        51.5  7910
##  2  1880    0.79        48.6 10510
##  3  1884    0.78        51   10970
##  4  1888    0.79        53   12420
##  5  1892    0.75        51.2 14300
##  6  1896    0.79        51.6 13300
##  7  1900    0.73        53.9 18700
##  8  1904    0.65        51.8 22900
##  9  1908    0.65        50.1 27700
## 10  1912    0.59        50.9 39400
## 11  1916    0.62        51.1 48300
## 12  1920    0.49        51.3 91500
## 13  1924    0.49        51.5 84700
## 14  1928    0.57        50.7 97000
## 15  1932    0.53        48.2 58500
## # ℹ 23 more rows
```

---

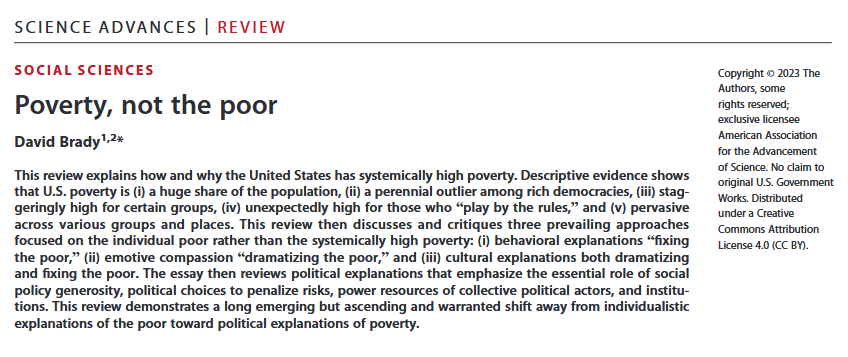

![Outlier1](Images/Brady1.png)

---

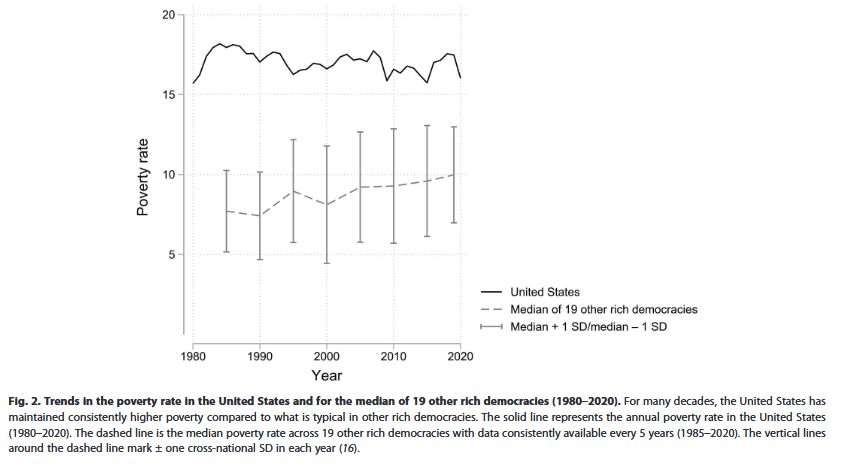

![Outlier2](Images/Brady2.png)

---

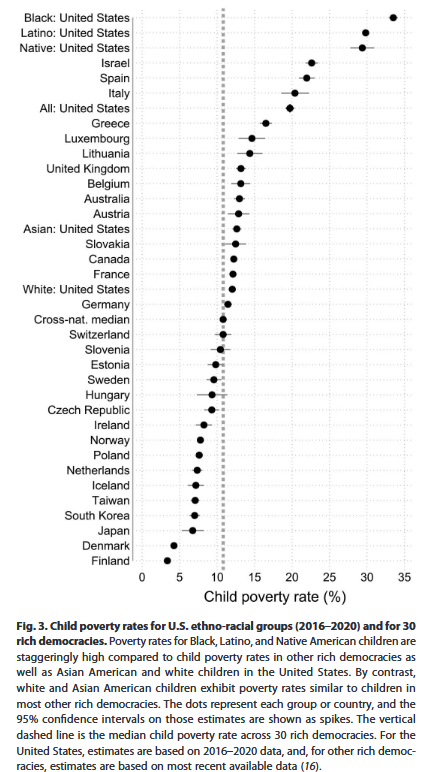

![Outlier3](Images/Brady3.png)
---

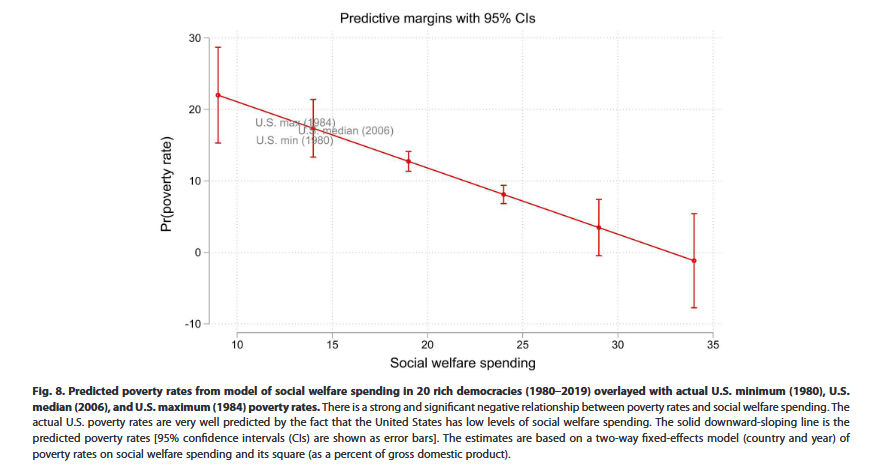

![Outlier4](Images/Brady4.png)
