Suppose we have a best linear predictor of a CEF. What do the `$a$` and `$b$` numbers mean?

---

```
## `geom_smooth()` using formula = 'y ~ x'
```

---

Let's imagine that our sample approximation of the BLP is exactly right.

---

``` r
blp.lm <- lm(Stateterrorism ~ TrumpShare, data=election2016)
blp.lm
```

```
##
## Call:
## lm(formula = Stateterrorism ~ TrumpShare, data = election2016)
##
## Coefficients:
## (Intercept)   TrumpShare
##     17.6841      -0.2111
```

---

What does it mean that `$a = 17.6841$` and `$b = -0.2111$`?

---

`$$E(y|x_{i}) = a + b x_{i}$$`

`$$a + b x_{i} = E(y|x_{i})$$`

`$$a = E(y|x_{i}) - b x_{i}$$`

Let `$x_{i} = 0$`. Then:

`$$a = E(y|x_{i})$$`.

---

So we would expect to see an average of 17.6841 in states where Trump got no votes.

---

`$$E(y|x_{i}) = a + b x_{i}$$`

Suppose that `$x_{j} = x_{i} + 1$`. What is `$E(y|x_{j}) - E(y|x_{i})$`?

---

`$$E(y|x_{j}) - E(y|x_{i}) = (a + b x_{j}) - (a + b x_{i})$$`
`$$E(y|x_{j}) - E(y|x_{i}) = a + b x_{j} - a - b x_{i}$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b x_{j} - b x_{i}$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b (x_{j} - x_{i})$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b (1)$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b$$`

---

So if there was a cluster of states where Trump got 49 percent of the vote, and another cluster of states where Trump got 50 percent of the vote, we would expect that second cluster to average 0.2111 fewer terrorist attacks since 2015 compared to the first cluster.

---

How does this change if we add a control variable?

---

`$$E(y|x_{1,i}, x_{2,i}) = a + b_{1} x_{1,i} + b_{2} x_{2,i}$$`

---

Nothing really changes about `$a$`.

---

Let's treat `$x_{2}$` as a control variable and `$x_{1}$` as the variable of interest.

Suppose that `$x_{1,j} = x_{1,i} + 1$`. What is `$E(y|x_{1,j},x_{2}) - E(y|x_{i},x_{2})$`?

---

`$$E(y|x_{j}) - E(y|x_{i}) = (a + b_{1} x_{1,j} + b_{2} x_{2}) - (a + b_{1} x_{1,i} + b_{2}x_{2})$$`
`$$E(y|x_{j}) - E(y|x_{i}) = a + b_{1} x_{1,j} + b_{2} x_{2} - a - b_{1} x_{1,i} - b_{2}x_{2}$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b_{1} x_{1,j} - b_{1} x_{1,i}$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b_{1} (x_{1,j} - x_{1,i})$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b_{1} (1)$$`
`$$E(y|x_{j}) - E(y|x_{i}) = b_{1}$$`

---

<div class="plotly html-widget html-fill-item" id="htmlwidget-57a69220eec6b6df003b" style="width:90%;height:504px;"></div>
<script type="application/json" data-for="htmlwidget-57a69220eec6b6df003b">{"x":{"visdat":{"29001d7166f0":["function () ","plotlyVisDat"],"290029c977f0":["function () ","data"]},"cur_data":"290029c977f0","attrs":{"29001d7166f0":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"z":[[21.475081686632347,20.859708699126887,20.244335711621428,19.628962724115972,19.013589736610513,18.398216749105053,17.782843761599594,17.167470774094134,16.552097786588675,15.936724799083215,15.321351811577756,14.705978824072297,14.090605836566835,13.475232849061378,12.859859861555918,12.244486874050459,11.629113886544999,11.01374089903954,10.398367911534081,9.7829949240286229,9.1676219365231635,8.552248949017704,7.9368759615122428,7.3215029740067834,6.706129986501324,6.0907569989958681,5.4753840114904087,4.8600110239849492,4.2446380364794862,3.6292650489740303],[21.309547610512087,20.694174623006628,20.078801635501168,19.463428647995713,18.848055660490253,18.232682672984794,17.617309685479334,17.001936697973875,16.386563710468415,15.771190722962954,15.155817735457495,14.540444747952035,13.925071760446574,13.309698772941116,12.694325785435657,12.078952797930198,11.463579810424738,10.848206822919279,10.232833835413819,9.6174608479083616,9.0020878604029022,8.3867148728974428,7.7713418853919816,7.1559688978865221,6.5405959103810627,5.9252229228756068,5.3098499353701474,4.6944769478646879,4.079103960359225,3.4637309728537691],[21.144013534391824,20.528640546886365,19.913267559380905,19.29789457187545,18.68252158436999,18.067148596864531,17.451775609359071,16.836402621853612,16.221029634348152,15.605656646842693,14.990283659337234,14.374910671831774,13.759537684326313,13.144164696820855,12.528791709315396,11.913418721809936,11.298045734304477,10.682672746799017,10.067299759293558,9.4519267717881004,8.8365537842826409,8.2211807967771815,7.6058078092717203,6.9904348217662609,6.3750618342608014,5.7596888467553455,5.1443158592498861,4.5289428717444267,3.9135698842389641,3.2981968967335082],[20.978479458271565,20.363106470766105,19.747733483260646,19.13236049575519,18.516987508249731,17.901614520744271,17.286241533238812,16.670868545733352,16.055495558227893,15.440122570722433,14.824749583216974,14.209376595711515,13.594003608206052,12.978630620700596,12.363257633195136,11.747884645689677,11.132511658184217,10.517138670678758,9.9017656831732985,9.2863926956678391,8.6710197081623797,8.0556467206569202,7.4402737331514599,6.8249007456460005,6.209527758140541,5.5941547706350851,4.9787817831296257,4.3634087956241663,3.7480358081187033,3.1326628206132474],[20.812945382151302,20.197572394645842,19.582199407140383,18.966826419634927,18.351453432129468,17.736080444624008,17.120707457118549,16.505334469613089,15.889961482107632,15.274588494602172,14.659215507096713,14.043842519591253,13.428469532085792,12.813096544580334,12.197723557074875,11.582350569569416,10.966977582063956,10.351604594558497,9.7362316070530373,9.1208586195475796,8.5054856320421202,7.8901126445366598,7.2747396570311986,6.6593666695257392,6.0439936820202798,5.4286206945148239,4.8132477070093644,4.197874719503905,3.582501731998442,2.9671287444929861],[20.647411306031042,20.032038318525583,19.416665331020123,18.801292343514667,18.185919356009208,17.570546368503749,16.955173380998289,16.33980039349283,15.72442740598737,15.109054418481911,14.493681430976451,13.878308443470992,13.262935455965531,12.647562468460073,12.032189480954614,11.416816493449154,10.801443505943695,10.186070518438235,9.570697530932776,8.9553245434273183,8.3399515559218589,7.7245785684163986,7.1092055809109373,6.4938325934054779,5.8784596059000185,5.2630866183945626,4.6477136308891032,4.0323406433836437,3.4169676558781812,2.8015946683727253],[20.481877229910779,19.86650424240532,19.25113125489986,18.635758267394404,18.020385279888945,17.405012292383486,16.789639304878026,16.174266317372567,15.558893329867109,14.94352034236165,14.32814735485619,13.712774367350731,13.09740137984527,12.482028392339812,11.866655404834352,11.251282417328893,10.635909429823434,10.020536442317974,9.4051634548125147,8.789790467307057,8.1744174798015976,7.5590444922961382,6.943671504790677,6.3282985172852175,5.7129255297797581,5.0975525422743022,4.4821795547688428,3.8668065672633833,3.2514335797579204,2.6360605922524645],[20.31634315379052,19.70097016628506,19.085597178779601,18.470224191274145,17.854851203768686,17.239478216263226,16.624105228757767,16.008732241252307,15.393359253746848,14.777986266241388,14.162613278735929,13.547240291230469,12.931867303725008,12.316494316219551,11.701121328714091,11.085748341208632,10.470375353703172,9.8550023661977129,9.2396293786922534,8.6242563911867958,8.0088834036813363,7.3935104161758769,6.7781374286704157,6.1627644411649563,5.5473914536594968,4.9320184661540409,4.3166454786485815,3.7012724911431221,3.0858995036376591,2.4705265161322032],[20.15080907767026,19.535436090164801,18.920063102659341,18.304690115153885,17.689317127648426,17.073944140142967,16.458571152637507,15.843198165132046,15.227825177626586,14.612452190121127,13.997079202615668,13.381706215110208,12.766333227604747,12.150960240099289,11.53558725259383,10.92021426508837,10.304841277582911,9.6894682900774516,9.0740953025719921,8.4587223150665345,7.8433493275610751,7.2279763400556156,6.6126033525501544,5.997230365044695,5.3818573775392355,4.7664843900337797,4.1511114025283202,3.5357384150228612,2.9203654275173982,2.3049924400119424],[19.985275001549997,19.369902014044538,18.754529026539078,18.139156039033622,17.523783051528163,16.908410064022704,16.293037076517244,15.677664089011785,15.062291101506325,14.446918114000866,13.831545126495406,13.216172138989947,12.600799151484486,11.985426163979028,11.370053176473569,10.754680188968109,10.13930720146265,9.5239342139571903,8.9085612264517309,8.2931882389462732,7.6778152514408147,7.0624422639353552,6.447069276429894,5.8316962889244346,5.2163233014189752,4.6009503139135193,3.9855773264080594,3.3702043389026,2.754831351397137,2.1394583638916811],[19.819740925429738,19.204367937924278,18.588994950418819,17.973621962913363,17.358248975407903,16.742875987902444,16.127503000396985,15.512130012891523,14.896757025386064,14.281384037880605,13.666011050375145,13.050638062869686,12.435265075364224,11.819892087858767,11.204519100353307,10.589146112847848,9.9737731253423885,9.358400137836929,8.7430271503314696,8.1276541628260119,7.5122811753205534,6.896908187815094,6.2815352003096327,5.6661622128041733,5.0507892252987139,4.435416237793258,3.8200432502877986,3.2046702627823391,2.5892972752768761,1.97392428777142],[19.654206849309475,19.038833861804015,18.423460874298556,17.8080878867931,17.19271489928764,16.577341911782181,15.961968924276723,15.346595936771264,14.731222949265804,14.115849961760345,13.500476974254886,12.885103986749426,12.269730999243965,11.654358011738507,11.038985024233048,10.423612036727588,9.808239049222129,9.1928660617166695,8.5774930742112101,7.9621200867057516,7.3467470992002921,6.7313741116948327,6.1160011241893715,5.500628136683912,4.8852551491784526,4.2698821616729967,3.6545091741675377,3.0391361866620783,2.4237631991566153,1.8083902116511594],[19.488672773189215,18.873299785683756,18.257926798178296,17.64255381067284,17.027180823167381,16.411807835661921,15.796434848156462,15.181061860651003,14.565688873145543,13.950315885640084,13.334942898134624,12.719569910629165,12.104196923123704,11.488823935618246,10.873450948112787,10.258077960607327,9.6427049731018677,9.0273319855964083,8.4119589980909488,7.7965860105854912,7.1812130230800317,6.5658400355745723,5.9504670480691111,5.3350940605636517,4.7197210730581922,4.1043480855527363,3.4889750980472765,2.873602110541817,2.258229123036354,1.6428561355308982],[19.323138697068952,18.707765709563493,18.092392722058033,17.477019734552577,16.861646747047118,16.246273759541658,15.630900772036201,15.015527784530741,14.400154797025282,13.784781809519822,13.169408822014363,12.554035834508904,11.938662847003442,11.323289859497985,10.707916871992525,10.092543884487066,9.4771708969816064,8.861797909476147,8.2464249219706875,7.6310519344652299,7.0156789469597705,6.400305959454311,5.7849329719488498,5.1695599844433904,4.5541869969379309,3.9388140094324751,3.3234410219270156,2.7080680344215562,2.0926950469160932,1.4773220594106371],[19.157604620948693,18.542231633443233,17.926858645937774,17.311485658432318,16.696112670926858,16.080739683421399,15.465366695915939,14.84999370841048,14.234620720905021,13.619247733399561,13.003874745894102,12.388501758388642,11.773128770883181,11.157755783377723,10.542382795872264,9.9270098083668046,9.3116368208613451,8.6962638333558857,8.0808908458504263,7.4655178583449686,6.8501448708395092,6.2347718833340497,5.6193988958285885,5.0040259083231291,4.3886529208176697,3.7732799333122142,3.1579069458067548,2.5425339583012954,1.9271609707958324,1.3117879832903765],[18.992070544828433,18.376697557322974,17.761324569817514,17.145951582312058,16.530578594806599,15.915205607301138,15.299832619795678,14.684459632290219,14.069086644784759,13.4537136572793,12.83834066977384,12.222967682268381,11.60759469476292,10.992221707257462,10.376848719752003,9.7614757322465433,9.1461027447410839,8.5307297572356244,7.915356769730165,7.2999837822247073,6.6846107947192479,6.0692378072137885,5.4538648197083273,4.8384918322028678,4.2231188446974084,3.6077458571919525,2.9923728696864931,2.3769998821810336,1.7616268946755709,1.146253907170115],[18.82653646870817,18.211163481202711,17.595790493697251,16.980417506191795,16.365044518686336,15.749671531180876,15.134298543675417,14.518925556169958,13.903552568664498,13.288179581159039,12.672806593653579,12.05743360614812,11.442060618642659,10.826687631137201,10.211314643631741,9.595941656126282,8.9805686686208226,8.3651956811153632,7.7498226936099046,7.134449706104447,6.5190767185989875,5.9037037310935281,5.2883307435880669,4.6729577560826074,4.057584768577148,3.4422117810716921,2.8268387935662327,2.2114658060607733,1.59609281855531,0.98071983104985416],[18.66100239258791,18.045629405082451,17.430256417576992,16.814883430071536,16.199510442566076,15.584137455060617,14.968764467555157,14.353391480049698,13.738018492544239,13.122645505038779,12.50727251753332,11.89189953002786,11.276526542522399,10.661153555016941,10.045780567511482,9.4304075800060225,8.8150345925005631,8.1996616049951037,7.5842886174896433,6.9689156299841857,6.3535426424787262,5.7381696549732668,5.1227966674678056,4.5074236799623462,3.8920506924568867,3.2766777049514308,2.6613047174459714,2.045931729940512,1.4305587424350492,0.81518575492959333],[18.495468316467647,17.880095328962188,17.264722341456729,16.649349353951273,16.033976366445813,15.418603378940356,14.803230391434896,14.187857403929437,13.572484416423977,12.957111428918518,12.341738441413058,11.726365453907599,11.110992466402138,10.49561947889668,9.8802464913912207,9.2648735038857613,8.6495005163803018,8.0341275288748424,7.4187545413693821,6.8033815538639244,6.188008566358465,5.5726355788530055,4.9572625913475443,4.3418896038420849,3.7265166163366255,3.1111436288311696,2.4957706413257101,1.8803976538202509,1.2650246663147879,0.64965167880933206],[18.329934240347388,17.714561252841929,17.099188265336469,16.483815277831013,15.868442290325554,15.253069302820094,14.637696315314635,14.022323327809175,13.406950340303716,12.791577352798257,12.176204365292797,11.560831377787338,10.945458390281877,10.330085402776419,9.7147124152709594,9.0993394277655,8.4839664402600405,7.8685934527545811,7.2532204652491217,6.637847477743664,6.0224744902382046,5.4071015027327451,4.7917285152272839,4.1763555277218245,3.5609825402163651,2.9456095527109092,2.3302365652054498,1.7148635776999901,1.0994905901945271,0.48411760268907122],[18.164400164227125,17.549027176721665,16.933654189216206,16.31828120171075,15.702908214205292,15.087535226699833,14.472162239194374,13.856789251688914,13.241416264183455,12.626043276677995,12.010670289172536,11.395297301667076,10.779924314161615,10.164551326656158,9.5491783391506981,8.9338053516452387,8.3184323641397793,7.7030593766343198,7.0876863891288604,6.4723134016234027,5.8569404141179433,5.2415674266124839,4.6261944391070227,4.0108214516015632,3.3954484640961038,2.7800754765906479,2.1647024890851885,1.5493295015797288,0.93395651407426583,0.31858352656880995],[17.998866088106865,17.383493100601406,16.768120113095947,16.152747125590491,15.537374138085031,14.922001150579572,14.306628163074112,13.691255175568653,13.075882188063193,12.460509200557734,11.845136213052275,11.229763225546815,10.614390238041354,9.9990172505358963,9.3836442630304369,8.7682712755249774,8.152898288019518,7.5375253005140586,6.9221523130085991,6.3067793255031415,5.691406337997682,5.0760333504922226,4.4606603629867614,3.845287375481302,3.2299143879758425,2.6145414004703866,1.9991684129649274,1.383795425459468,0.768422437954005,0.15304945044854912],[17.833332011986606,17.217959024481146,16.602586036975687,15.987213049470229,15.37184006196477,14.75646707445931,14.141094086953851,13.525721099448392,12.910348111942932,12.294975124437473,11.679602136932013,11.064229149426554,10.448856161921093,9.833483174415635,9.2181101869101756,8.6027371994047162,7.9873642118992576,7.3719912243937982,6.7566182368883387,6.1412452493828811,5.5258722618774216,4.9104992743719622,4.295126286866501,3.6797532993610416,3.0643803118555821,2.4490073243501262,1.8336343368446666,1.2182613493392072,0.60288836183374417,-0.012484625671711713],[17.667797935866343,17.052424948360883,16.437051960855424,15.821678973349968,15.206305985844509,14.590932998339049,13.97556001083359,13.36018702332813,12.744814035822671,12.129441048317211,11.514068060811752,10.898695073306293,10.283322085800831,9.6679490982953737,9.0525761107899143,8.4372031232844549,7.8218301357789954,7.206457148273536,6.5910841607680766,5.9757111732626189,5.3603381857571595,4.7449651982517,4.1295922107462388,3.5142192232407798,2.8988462357353204,2.2834732482298645,1.6681002607244051,1.0527272732189457,0.43735428571348267,-0.17801870179197321],[17.502263859746083,16.886890872240624,16.271517884735164,15.656144897229709,15.040771909724249,14.42539892221879,13.81002593471333,13.194652947207871,12.579279959702411,11.963906972196952,11.348533984691493,10.733160997186033,10.11778800968057,9.5024150221751142,8.8870420346696548,8.2716690471641954,7.6562960596587351,7.0409230721532756,6.4255500846478162,5.8101770971423585,5.1948041096368991,4.5794311221314397,3.9640581346259784,3.348685147120519,2.7333121596150596,2.1179391721096037,1.5025661846041443,0.88719319709868483,0.27182020959322184,-0.34355277791223404],[17.33672978362582,16.721356796120361,16.105983808614901,15.490610821109447,14.875237833603988,14.259864846098528,13.644491858593069,13.02911887108761,12.41374588358215,11.798372896076691,11.182999908571231,10.567626921065772,9.9522539335603106,9.336880946054853,8.7215079585493935,8.1061349710439341,7.4907619835384747,6.8753889960330152,6.2600160085275558,5.6446430210220981,5.0292700335166387,4.4138970460111793,3.7985240585057176,3.1831510710002582,2.5677780834947987,1.9524050959893429,1.3370321084838834,0.721659120978424,0.10628613347296101,-0.50908685403249487],[17.171195707505561,16.555822720000101,15.940449732494642,15.325076744989186,14.709703757483727,14.094330769978267,13.478957782472808,12.863584794967348,12.248211807461889,11.632838819956429,11.01746583245097,10.402092844945511,9.7867198574400494,9.1713468699345917,8.5559738824291323,7.9406008949236728,7.3252279074182134,6.709854919912754,6.0944819324072945,5.4791089449018369,4.8637359573963774,4.248362969890918,3.6329899823854563,3.0176169948799969,2.4022440073745375,1.7868710198690816,1.1714980323636222,0.55612504485816272,-0.059247942647300267,-0.67462093015275615],[17.005661631385301,16.390288643879842,15.774915656374381,15.159542668868925,14.544169681363465,13.928796693858006,13.313423706352546,12.698050718847087,12.082677731341628,11.467304743836168,10.851931756330709,10.236558768825249,9.6211857813197881,9.0058127938143304,8.390439806308871,7.7750668188034116,7.1596938312979521,6.5443208437924927,5.9289478562870332,5.3135748687815756,4.6982018812761162,4.0828288937706567,3.4674559062651955,2.8520829187597361,2.2367099312542766,1.6213369437488208,1.0059639562433613,0.39059096873790189,-0.2247820187675611,-0.84015500627301698],[16.840127555265038,16.224754567759579,15.609381580254119,14.994008592748663,14.378635605243204,13.763262617737745,13.147889630232285,12.532516642726826,11.917143655221366,11.301770667715907,10.686397680210447,10.071024692704988,9.4556517051995268,8.8402787176940691,8.2249057301886097,7.6095327426831503,6.9941597551776908,6.3787867676722314,5.763413780166772,5.1480407926613143,4.5326678051558549,3.9172948176503959,3.3019218301449347,2.6865488426394752,2.0711758551340158,1.4558028676285599,0.84042988012310049,0.22505689261764106,-0.39031609488782193,-1.0056890823932778],[16.674593479144779,16.059220491639319,15.443847504133858,14.828474516628402,14.213101529122943,13.597728541617483,12.982355554112024,12.366982566606564,11.751609579101105,11.136236591595646,10.520863604090186,9.9054906165847267,9.2901176290792655,8.6747446415738079,8.0593716540683484,7.443998666562889,6.8286256790574296,6.2132526915519701,5.5978797040465107,4.982506716541053,4.3671337290355936,3.7517607415301346,3.1363877540246734,2.521014766519214,1.9056417790137545,1.2902687915082987,0.67489580400283922,0.059522816497379782,-0.5558501710080832,-1.1712231585135391]],"type":"surface","x":[4.0999999999999996,6.3241379310344819,8.5482758620689658,10.772413793103448,12.99655172413793,15.220689655172412,17.444827586206898,19.668965517241379,21.893103448275859,24.117241379310343,26.341379310344827,28.565517241379311,30.789655172413795,33.013793103448272,35.237931034482756,37.46206896551724,39.686206896551724,41.910344827586208,44.134482758620692,46.358620689655169,48.582758620689653,50.806896551724137,53.031034482758621,55.255172413793105,57.479310344827589,59.703448275862065,61.927586206896549,64.151724137931026,66.375862068965517,68.599999999999994],"y":[-48,-43.46206896551724,-38.92413793103448,-34.386206896551727,-29.848275862068967,-25.310344827586206,-20.77241379310345,-16.234482758620693,-11.696551724137933,-7.158620689655173,-2.6206896551724128,1.9172413793103402,6.4551724137931004,10.993103448275861,15.531034482758614,20.068965517241381,24.606896551724134,29.144827586206887,33.682758620689654,38.220689655172407,42.758620689655174,47.296551724137927,51.83448275862068,56.372413793103448,60.910344827586201,65.448275862068954,69.986206896551721,74.524137931034474,79.062068965517227,83.599999999999994],"opacity":0.59999999999999998,"colorscale":[["0","#6495ED"],["1","#6495ED"]],"showscale":false,"name":"Regression Plane","contours":{"z":{"show":true,"width":1,"color":"white","highlight":false}},"inherit":true},"290029c977f0":{"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"y":{},"z":{},"type":"scatter3d","mode":"markers","marker":{"size":5,"color":"blue","opacity":0.69999999999999996},"name":"Actual Data","inherit":true}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"scene":{"xaxis":{"title":"Trump Vote Share"},"yaxis":{"title":"2012 Margin"},"zaxis":{"title":"State Terrorism Incidents"},"camera":{"eye":{"x":1.5,"y":1.5,"z":1.5}}},"title":"Multivariate Regression: Terrorism ~ TrumpShare + D12Margin","hovermode":"closest","showlegend":true},"source":"A","config":{"modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"data":[{"colorbar":{"title":"Stateterrorism","ticklen":2},"colorscale":[["0","#6495ED"],["1","#6495ED"]],"showscale":false,"z":[[21.475081686632347,20.859708699126887,20.244335711621428,19.628962724115972,19.013589736610513,18.398216749105053,17.782843761599594,17.167470774094134,16.552097786588675,15.936724799083215,15.321351811577756,14.705978824072297,14.090605836566835,13.475232849061378,12.859859861555918,12.244486874050459,11.629113886544999,11.01374089903954,10.398367911534081,9.7829949240286229,9.1676219365231635,8.552248949017704,7.9368759615122428,7.3215029740067834,6.706129986501324,6.0907569989958681,5.4753840114904087,4.8600110239849492,4.2446380364794862,3.6292650489740303],[21.309547610512087,20.694174623006628,20.078801635501168,19.463428647995713,18.848055660490253,18.232682672984794,17.617309685479334,17.001936697973875,16.386563710468415,15.771190722962954,15.155817735457495,14.540444747952035,13.925071760446574,13.309698772941116,12.694325785435657,12.078952797930198,11.463579810424738,10.848206822919279,10.232833835413819,9.6174608479083616,9.0020878604029022,8.3867148728974428,7.7713418853919816,7.1559688978865221,6.5405959103810627,5.9252229228756068,5.3098499353701474,4.6944769478646879,4.079103960359225,3.4637309728537691],[21.144013534391824,20.528640546886365,19.913267559380905,19.29789457187545,18.68252158436999,18.067148596864531,17.451775609359071,16.836402621853612,16.221029634348152,15.605656646842693,14.990283659337234,14.374910671831774,13.759537684326313,13.144164696820855,12.528791709315396,11.913418721809936,11.298045734304477,10.682672746799017,10.067299759293558,9.4519267717881004,8.8365537842826409,8.2211807967771815,7.6058078092717203,6.9904348217662609,6.3750618342608014,5.7596888467553455,5.1443158592498861,4.5289428717444267,3.9135698842389641,3.2981968967335082],[20.978479458271565,20.363106470766105,19.747733483260646,19.13236049575519,18.516987508249731,17.901614520744271,17.286241533238812,16.670868545733352,16.055495558227893,15.440122570722433,14.824749583216974,14.209376595711515,13.594003608206052,12.978630620700596,12.363257633195136,11.747884645689677,11.132511658184217,10.517138670678758,9.9017656831732985,9.2863926956678391,8.6710197081623797,8.0556467206569202,7.4402737331514599,6.8249007456460005,6.209527758140541,5.5941547706350851,4.9787817831296257,4.3634087956241663,3.7480358081187033,3.1326628206132474],[20.812945382151302,20.197572394645842,19.582199407140383,18.966826419634927,18.351453432129468,17.736080444624008,17.120707457118549,16.505334469613089,15.889961482107632,15.274588494602172,14.659215507096713,14.043842519591253,13.428469532085792,12.813096544580334,12.197723557074875,11.582350569569416,10.966977582063956,10.351604594558497,9.7362316070530373,9.1208586195475796,8.5054856320421202,7.8901126445366598,7.2747396570311986,6.6593666695257392,6.0439936820202798,5.4286206945148239,4.8132477070093644,4.197874719503905,3.582501731998442,2.9671287444929861],[20.647411306031042,20.032038318525583,19.416665331020123,18.801292343514667,18.185919356009208,17.570546368503749,16.955173380998289,16.33980039349283,15.72442740598737,15.109054418481911,14.493681430976451,13.878308443470992,13.262935455965531,12.647562468460073,12.032189480954614,11.416816493449154,10.801443505943695,10.186070518438235,9.570697530932776,8.9553245434273183,8.3399515559218589,7.7245785684163986,7.1092055809109373,6.4938325934054779,5.8784596059000185,5.2630866183945626,4.6477136308891032,4.0323406433836437,3.4169676558781812,2.8015946683727253],[20.481877229910779,19.86650424240532,19.25113125489986,18.635758267394404,18.020385279888945,17.405012292383486,16.789639304878026,16.174266317372567,15.558893329867109,14.94352034236165,14.32814735485619,13.712774367350731,13.09740137984527,12.482028392339812,11.866655404834352,11.251282417328893,10.635909429823434,10.020536442317974,9.4051634548125147,8.789790467307057,8.1744174798015976,7.5590444922961382,6.943671504790677,6.3282985172852175,5.7129255297797581,5.0975525422743022,4.4821795547688428,3.8668065672633833,3.2514335797579204,2.6360605922524645],[20.31634315379052,19.70097016628506,19.085597178779601,18.470224191274145,17.854851203768686,17.239478216263226,16.624105228757767,16.008732241252307,15.393359253746848,14.777986266241388,14.162613278735929,13.547240291230469,12.931867303725008,12.316494316219551,11.701121328714091,11.085748341208632,10.470375353703172,9.8550023661977129,9.2396293786922534,8.6242563911867958,8.0088834036813363,7.3935104161758769,6.7781374286704157,6.1627644411649563,5.5473914536594968,4.9320184661540409,4.3166454786485815,3.7012724911431221,3.0858995036376591,2.4705265161322032],[20.15080907767026,19.535436090164801,18.920063102659341,18.304690115153885,17.689317127648426,17.073944140142967,16.458571152637507,15.843198165132046,15.227825177626586,14.612452190121127,13.997079202615668,13.381706215110208,12.766333227604747,12.150960240099289,11.53558725259383,10.92021426508837,10.304841277582911,9.6894682900774516,9.0740953025719921,8.4587223150665345,7.8433493275610751,7.2279763400556156,6.6126033525501544,5.997230365044695,5.3818573775392355,4.7664843900337797,4.1511114025283202,3.5357384150228612,2.9203654275173982,2.3049924400119424],[19.985275001549997,19.369902014044538,18.754529026539078,18.139156039033622,17.523783051528163,16.908410064022704,16.293037076517244,15.677664089011785,15.062291101506325,14.446918114000866,13.831545126495406,13.216172138989947,12.600799151484486,11.985426163979028,11.370053176473569,10.754680188968109,10.13930720146265,9.5239342139571903,8.9085612264517309,8.2931882389462732,7.6778152514408147,7.0624422639353552,6.447069276429894,5.8316962889244346,5.2163233014189752,4.6009503139135193,3.9855773264080594,3.3702043389026,2.754831351397137,2.1394583638916811],[19.819740925429738,19.204367937924278,18.588994950418819,17.973621962913363,17.358248975407903,16.742875987902444,16.127503000396985,15.512130012891523,14.896757025386064,14.281384037880605,13.666011050375145,13.050638062869686,12.435265075364224,11.819892087858767,11.204519100353307,10.589146112847848,9.9737731253423885,9.358400137836929,8.7430271503314696,8.1276541628260119,7.5122811753205534,6.896908187815094,6.2815352003096327,5.6661622128041733,5.0507892252987139,4.435416237793258,3.8200432502877986,3.2046702627823391,2.5892972752768761,1.97392428777142],[19.654206849309475,19.038833861804015,18.423460874298556,17.8080878867931,17.19271489928764,16.577341911782181,15.961968924276723,15.346595936771264,14.731222949265804,14.115849961760345,13.500476974254886,12.885103986749426,12.269730999243965,11.654358011738507,11.038985024233048,10.423612036727588,9.808239049222129,9.1928660617166695,8.5774930742112101,7.9621200867057516,7.3467470992002921,6.7313741116948327,6.1160011241893715,5.500628136683912,4.8852551491784526,4.2698821616729967,3.6545091741675377,3.0391361866620783,2.4237631991566153,1.8083902116511594],[19.488672773189215,18.873299785683756,18.257926798178296,17.64255381067284,17.027180823167381,16.411807835661921,15.796434848156462,15.181061860651003,14.565688873145543,13.950315885640084,13.334942898134624,12.719569910629165,12.104196923123704,11.488823935618246,10.873450948112787,10.258077960607327,9.6427049731018677,9.0273319855964083,8.4119589980909488,7.7965860105854912,7.1812130230800317,6.5658400355745723,5.9504670480691111,5.3350940605636517,4.7197210730581922,4.1043480855527363,3.4889750980472765,2.873602110541817,2.258229123036354,1.6428561355308982],[19.323138697068952,18.707765709563493,18.092392722058033,17.477019734552577,16.861646747047118,16.246273759541658,15.630900772036201,15.015527784530741,14.400154797025282,13.784781809519822,13.169408822014363,12.554035834508904,11.938662847003442,11.323289859497985,10.707916871992525,10.092543884487066,9.4771708969816064,8.861797909476147,8.2464249219706875,7.6310519344652299,7.0156789469597705,6.400305959454311,5.7849329719488498,5.1695599844433904,4.5541869969379309,3.9388140094324751,3.3234410219270156,2.7080680344215562,2.0926950469160932,1.4773220594106371],[19.157604620948693,18.542231633443233,17.926858645937774,17.311485658432318,16.696112670926858,16.080739683421399,15.465366695915939,14.84999370841048,14.234620720905021,13.619247733399561,13.003874745894102,12.388501758388642,11.773128770883181,11.157755783377723,10.542382795872264,9.9270098083668046,9.3116368208613451,8.6962638333558857,8.0808908458504263,7.4655178583449686,6.8501448708395092,6.2347718833340497,5.6193988958285885,5.0040259083231291,4.3886529208176697,3.7732799333122142,3.1579069458067548,2.5425339583012954,1.9271609707958324,1.3117879832903765],[18.992070544828433,18.376697557322974,17.761324569817514,17.145951582312058,16.530578594806599,15.915205607301138,15.299832619795678,14.684459632290219,14.069086644784759,13.4537136572793,12.83834066977384,12.222967682268381,11.60759469476292,10.992221707257462,10.376848719752003,9.7614757322465433,9.1461027447410839,8.5307297572356244,7.915356769730165,7.2999837822247073,6.6846107947192479,6.0692378072137885,5.4538648197083273,4.8384918322028678,4.2231188446974084,3.6077458571919525,2.9923728696864931,2.3769998821810336,1.7616268946755709,1.146253907170115],[18.82653646870817,18.211163481202711,17.595790493697251,16.980417506191795,16.365044518686336,15.749671531180876,15.134298543675417,14.518925556169958,13.903552568664498,13.288179581159039,12.672806593653579,12.05743360614812,11.442060618642659,10.826687631137201,10.211314643631741,9.595941656126282,8.9805686686208226,8.3651956811153632,7.7498226936099046,7.134449706104447,6.5190767185989875,5.9037037310935281,5.2883307435880669,4.6729577560826074,4.057584768577148,3.4422117810716921,2.8268387935662327,2.2114658060607733,1.59609281855531,0.98071983104985416],[18.66100239258791,18.045629405082451,17.430256417576992,16.814883430071536,16.199510442566076,15.584137455060617,14.968764467555157,14.353391480049698,13.738018492544239,13.122645505038779,12.50727251753332,11.89189953002786,11.276526542522399,10.661153555016941,10.045780567511482,9.4304075800060225,8.8150345925005631,8.1996616049951037,7.5842886174896433,6.9689156299841857,6.3535426424787262,5.7381696549732668,5.1227966674678056,4.5074236799623462,3.8920506924568867,3.2766777049514308,2.6613047174459714,2.045931729940512,1.4305587424350492,0.81518575492959333],[18.495468316467647,17.880095328962188,17.264722341456729,16.649349353951273,16.033976366445813,15.418603378940356,14.803230391434896,14.187857403929437,13.572484416423977,12.957111428918518,12.341738441413058,11.726365453907599,11.110992466402138,10.49561947889668,9.8802464913912207,9.2648735038857613,8.6495005163803018,8.0341275288748424,7.4187545413693821,6.8033815538639244,6.188008566358465,5.5726355788530055,4.9572625913475443,4.3418896038420849,3.7265166163366255,3.1111436288311696,2.4957706413257101,1.8803976538202509,1.2650246663147879,0.64965167880933206],[18.329934240347388,17.714561252841929,17.099188265336469,16.483815277831013,15.868442290325554,15.253069302820094,14.637696315314635,14.022323327809175,13.406950340303716,12.791577352798257,12.176204365292797,11.560831377787338,10.945458390281877,10.330085402776419,9.7147124152709594,9.0993394277655,8.4839664402600405,7.8685934527545811,7.2532204652491217,6.637847477743664,6.0224744902382046,5.4071015027327451,4.7917285152272839,4.1763555277218245,3.5609825402163651,2.9456095527109092,2.3302365652054498,1.7148635776999901,1.0994905901945271,0.48411760268907122],[18.164400164227125,17.549027176721665,16.933654189216206,16.31828120171075,15.702908214205292,15.087535226699833,14.472162239194374,13.856789251688914,13.241416264183455,12.626043276677995,12.010670289172536,11.395297301667076,10.779924314161615,10.164551326656158,9.5491783391506981,8.9338053516452387,8.3184323641397793,7.7030593766343198,7.0876863891288604,6.4723134016234027,5.8569404141179433,5.2415674266124839,4.6261944391070227,4.0108214516015632,3.3954484640961038,2.7800754765906479,2.1647024890851885,1.5493295015797288,0.93395651407426583,0.31858352656880995],[17.998866088106865,17.383493100601406,16.768120113095947,16.152747125590491,15.537374138085031,14.922001150579572,14.306628163074112,13.691255175568653,13.075882188063193,12.460509200557734,11.845136213052275,11.229763225546815,10.614390238041354,9.9990172505358963,9.3836442630304369,8.7682712755249774,8.152898288019518,7.5375253005140586,6.9221523130085991,6.3067793255031415,5.691406337997682,5.0760333504922226,4.4606603629867614,3.845287375481302,3.2299143879758425,2.6145414004703866,1.9991684129649274,1.383795425459468,0.768422437954005,0.15304945044854912],[17.833332011986606,17.217959024481146,16.602586036975687,15.987213049470229,15.37184006196477,14.75646707445931,14.141094086953851,13.525721099448392,12.910348111942932,12.294975124437473,11.679602136932013,11.064229149426554,10.448856161921093,9.833483174415635,9.2181101869101756,8.6027371994047162,7.9873642118992576,7.3719912243937982,6.7566182368883387,6.1412452493828811,5.5258722618774216,4.9104992743719622,4.295126286866501,3.6797532993610416,3.0643803118555821,2.4490073243501262,1.8336343368446666,1.2182613493392072,0.60288836183374417,-0.012484625671711713],[17.667797935866343,17.052424948360883,16.437051960855424,15.821678973349968,15.206305985844509,14.590932998339049,13.97556001083359,13.36018702332813,12.744814035822671,12.129441048317211,11.514068060811752,10.898695073306293,10.283322085800831,9.6679490982953737,9.0525761107899143,8.4372031232844549,7.8218301357789954,7.206457148273536,6.5910841607680766,5.9757111732626189,5.3603381857571595,4.7449651982517,4.1295922107462388,3.5142192232407798,2.8988462357353204,2.2834732482298645,1.6681002607244051,1.0527272732189457,0.43735428571348267,-0.17801870179197321],[17.502263859746083,16.886890872240624,16.271517884735164,15.656144897229709,15.040771909724249,14.42539892221879,13.81002593471333,13.194652947207871,12.579279959702411,11.963906972196952,11.348533984691493,10.733160997186033,10.11778800968057,9.5024150221751142,8.8870420346696548,8.2716690471641954,7.6562960596587351,7.0409230721532756,6.4255500846478162,5.8101770971423585,5.1948041096368991,4.5794311221314397,3.9640581346259784,3.348685147120519,2.7333121596150596,2.1179391721096037,1.5025661846041443,0.88719319709868483,0.27182020959322184,-0.34355277791223404],[17.33672978362582,16.721356796120361,16.105983808614901,15.490610821109447,14.875237833603988,14.259864846098528,13.644491858593069,13.02911887108761,12.41374588358215,11.798372896076691,11.182999908571231,10.567626921065772,9.9522539335603106,9.336880946054853,8.7215079585493935,8.1061349710439341,7.4907619835384747,6.8753889960330152,6.2600160085275558,5.6446430210220981,5.0292700335166387,4.4138970460111793,3.7985240585057176,3.1831510710002582,2.5677780834947987,1.9524050959893429,1.3370321084838834,0.721659120978424,0.10628613347296101,-0.50908685403249487],[17.171195707505561,16.555822720000101,15.940449732494642,15.325076744989186,14.709703757483727,14.094330769978267,13.478957782472808,12.863584794967348,12.248211807461889,11.632838819956429,11.01746583245097,10.402092844945511,9.7867198574400494,9.1713468699345917,8.5559738824291323,7.9406008949236728,7.3252279074182134,6.709854919912754,6.0944819324072945,5.4791089449018369,4.8637359573963774,4.248362969890918,3.6329899823854563,3.0176169948799969,2.4022440073745375,1.7868710198690816,1.1714980323636222,0.55612504485816272,-0.059247942647300267,-0.67462093015275615],[17.005661631385301,16.390288643879842,15.774915656374381,15.159542668868925,14.544169681363465,13.928796693858006,13.313423706352546,12.698050718847087,12.082677731341628,11.467304743836168,10.851931756330709,10.236558768825249,9.6211857813197881,9.0058127938143304,8.390439806308871,7.7750668188034116,7.1596938312979521,6.5443208437924927,5.9289478562870332,5.3135748687815756,4.6982018812761162,4.0828288937706567,3.4674559062651955,2.8520829187597361,2.2367099312542766,1.6213369437488208,1.0059639562433613,0.39059096873790189,-0.2247820187675611,-0.84015500627301698],[16.840127555265038,16.224754567759579,15.609381580254119,14.994008592748663,14.378635605243204,13.763262617737745,13.147889630232285,12.532516642726826,11.917143655221366,11.301770667715907,10.686397680210447,10.071024692704988,9.4556517051995268,8.8402787176940691,8.2249057301886097,7.6095327426831503,6.9941597551776908,6.3787867676722314,5.763413780166772,5.1480407926613143,4.5326678051558549,3.9172948176503959,3.3019218301449347,2.6865488426394752,2.0711758551340158,1.4558028676285599,0.84042988012310049,0.22505689261764106,-0.39031609488782193,-1.0056890823932778],[16.674593479144779,16.059220491639319,15.443847504133858,14.828474516628402,14.213101529122943,13.597728541617483,12.982355554112024,12.366982566606564,11.751609579101105,11.136236591595646,10.520863604090186,9.9054906165847267,9.2901176290792655,8.6747446415738079,8.0593716540683484,7.443998666562889,6.8286256790574296,6.2132526915519701,5.5978797040465107,4.982506716541053,4.3671337290355936,3.7517607415301346,3.1363877540246734,2.521014766519214,1.9056417790137545,1.2902687915082987,0.67489580400283922,0.059522816497379782,-0.5558501710080832,-1.1712231585135391]],"type":"surface","x":[4.0999999999999996,6.3241379310344819,8.5482758620689658,10.772413793103448,12.99655172413793,15.220689655172412,17.444827586206898,19.668965517241379,21.893103448275859,24.117241379310343,26.341379310344827,28.565517241379311,30.789655172413795,33.013793103448272,35.237931034482756,37.46206896551724,39.686206896551724,41.910344827586208,44.134482758620692,46.358620689655169,48.582758620689653,50.806896551724137,53.031034482758621,55.255172413793105,57.479310344827589,59.703448275862065,61.927586206896549,64.151724137931026,66.375862068965517,68.599999999999994],"y":[-48,-43.46206896551724,-38.92413793103448,-34.386206896551727,-29.848275862068967,-25.310344827586206,-20.77241379310345,-16.234482758620693,-11.696551724137933,-7.158620689655173,-2.6206896551724128,1.9172413793103402,6.4551724137931004,10.993103448275861,15.531034482758614,20.068965517241381,24.606896551724134,29.144827586206887,33.682758620689654,38.220689655172407,42.758620689655174,47.296551724137927,51.83448275862068,56.372413793103448,60.910344827586201,65.448275862068954,69.986206896551721,74.524137931034474,79.062068965517227,83.599999999999994],"opacity":0.59999999999999998,"name":"Regression Plane","contours":{"z":{"show":true,"width":1,"color":"white","highlight":false}},"frame":null},{"x":[62.100000000000001,51.299999999999997,48.700000000000003,60.600000000000001,31.600000000000001,43.299999999999997,40.899999999999999,41.899999999999999,4.0999999999999996,49,51,30,59.299999999999997,38.799999999999997,56.899999999999999,51.100000000000001,56.700000000000003,62.5,58.100000000000001,44.899999999999999,33.899999999999999,32.799999999999997,47.5,44.899999999999999,57.899999999999999,56.799999999999997,56.200000000000003,58.700000000000003,45.5,46.5,41.399999999999999,40,36.5,49.799999999999997,63,51.700000000000003,65.299999999999997,39.100000000000001,48.600000000000001,38.899999999999999,54.899999999999999,61.5,60.700000000000003,52.200000000000003,45.5,30.300000000000001,44.399999999999999,36.299999999999997,68.599999999999994,47.200000000000003,68.200000000000003],"y":[-22.199999999999999,-14,-9.0999999999999996,-23.699999999999999,23.100000000000001,5.4000000000000004,17.300000000000001,18.600000000000001,83.599999999999994,0.90000000000000002,-7.7999999999999998,42.700000000000003,-31.899999999999999,16.899999999999999,-10.199999999999999,5.7999999999999998,-21.699999999999999,-22.699999999999999,-17.199999999999999,15.300000000000001,26.100000000000001,23.100000000000001,9.5,7.7000000000000002,-11.5,-9.4000000000000004,-13.699999999999999,-21.800000000000001,6.7000000000000002,5.5999999999999996,17.800000000000001,10.1,28.199999999999999,-2,-19.600000000000001,3,-33.5,12.1,5.4000000000000004,27.5,-10.5,-18,-20.399999999999999,-15.800000000000001,-48,35.600000000000001,3.8999999999999999,14.9,-26.800000000000001,6.9000000000000004,-40.799999999999997],"z":[1,0,7,3,44,4,3,5,5,30,9,1,1,3,7,5,1,5,11,0,8,13,6,5,4,13,1,3,11,1,5,3,43,5,2,9,0,7,12,0,6,0,11,28,2,0,6,25,0,6,1],"type":"scatter3d","mode":"markers","marker":{"color":"blue","size":5,"opacity":0.69999999999999996,"line":{"color":"rgba(255,127,14,1)"}},"name":"Actual Data","error_y":{"color":"rgba(255,127,14,1)"},"error_x":{"color":"rgba(255,127,14,1)"},"line":{"color":"rgba(255,127,14,1)"},"frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

``` r
blp.multivariate <- lm(Stateterrorism ~ TrumpShare + D12Margin, data=election2016)
blp.multivariate
```

```
##
## Call:
## lm(formula = Stateterrorism ~ TrumpShare + D12Margin, data = election2016)
##
## Coefficients:
## (Intercept)   TrumpShare    D12Margin
##    20.85853     -0.27668     -0.03648
```

---

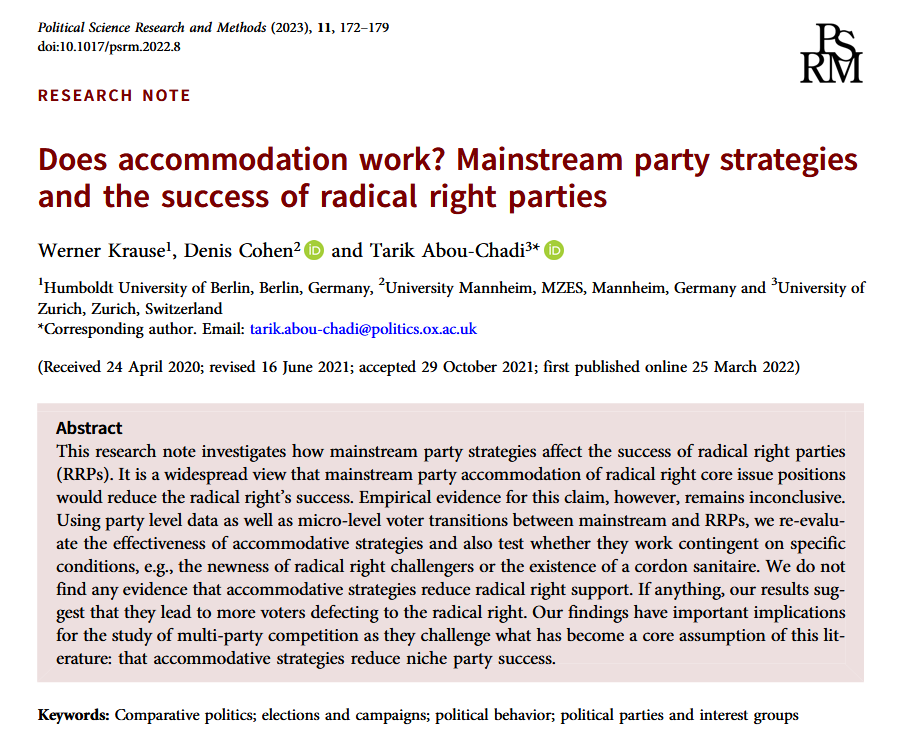

![Coefficients 1](Images/Krause1.png)

---

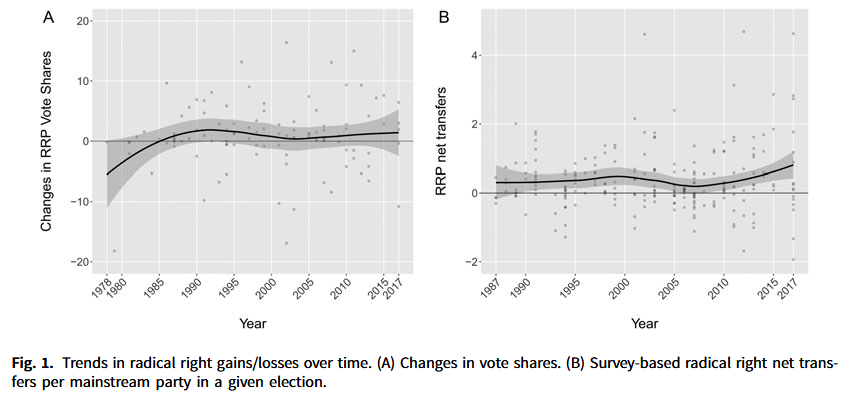

![Coefficients 2](Images/Krause2.png)

---

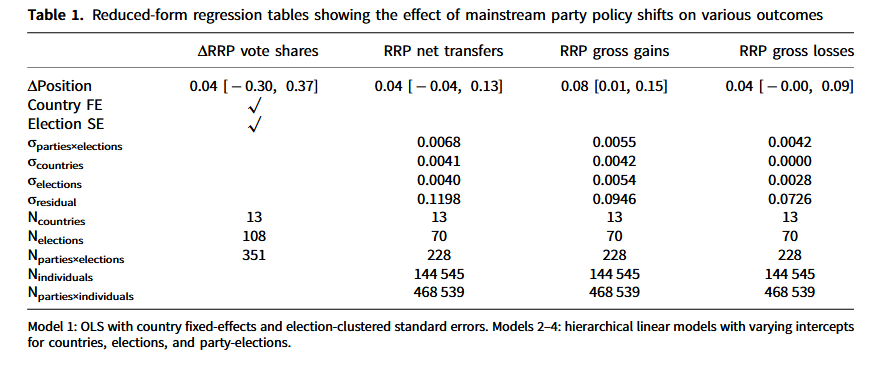

![Coefficients 3](Images/Krause3.png)

---

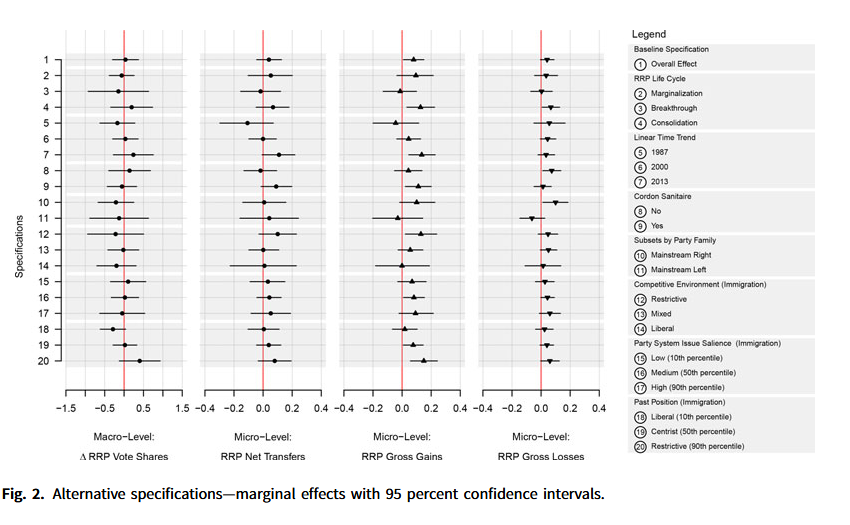

![Coefficients 4](Images/Krause4.png)
