.title[
# 8: Deriving OLS
]
.subtitle[
## Linear Models
]
.author[
### <large>Jaye Seawright</large>
]
.institute[
### <small>Northwestern Political Science</small>
]
.date[
### Feb. 2, 2026
]

---

class: center, middle

pre[class] {
  max-height: 200px;
}
</style>

* Up until this point, we've been thinking about models and parameters operating at the population level.

* To do empirical research, we're going to have to estimate: use finite amounts of data to come up with best guesses about population statistics.

---

*Plug-in principle:*

In a formula for a model of interest, replace population moments with their sample equivalents.

(E.g., replace expectations with sample means, replace covariances with sample covariances, replace variances with sample variances...)

---

Remember the regression model:

`$$y = \beta_0 + \beta_1x_1 + \epsilon$$`

Let's assume `$y$` and `$x_1$` both have mean 0, so that `$\beta_0$` disappears.

`$$y = \beta_1x_1 + \epsilon$$`

Our approach is to choose `$\beta_1$` to minimize `$\text{E}(y - \beta_1x_1)^2$`.

---

To minimize `$\text{E}(y - \beta_1x_1)^2$`, we take its derivative with respect to `$\beta_1$` and set the result equal to zero.

`$$\frac{\partial \text{E}(y - \beta_1x_1)^2}{\partial \beta_1} = 0$$`
`$$\text{E}(2(y - \beta_1x_1)(-x_1)) = 0$$`
`$$\text{E}(-2 x_1 y + 2\beta_1x_1^2) = 0$$`
`$$\text{E}(-2 x_1 y) + \text{E}(2\beta_1x_1^2) = 0$$`
`$$-2\text{E}(x_1 y) + 2\beta_1\text{E}(x_1^2) = 0$$`
---

`$$-2\text{E}(x_1 y) + 2\beta_1\text{E}(x_1^2) = 0$$`

`$$-\text{E}(x_1 y) + \beta_1\text{E}(x_1^2) = 0$$`

`$$-\text{cov}(x_1, y) + \beta_1\text{var}(x_1) = 0$$`
`$$\beta_1\text{var}(x_1) = \text{cov}(x_1, y)$$`
`$$\beta_1^* = \frac{\text{cov}(x_1, y)}{\text{var}(x_1)}$$`
Then our plug-in principle estimate is:

`$$\hat\beta = \frac{\sum_{i=1}^{N}(x_i * y_i)}{\sum_{i=1}^{N}(x_i^2)}$$`

---

For multivariate models, the process of the argument is basically the same, but the setup uses matrix algebra and calculus. As we'll discuss a couple more times, the regression model in matrix form looks like this:

`$$Y = \mathbb{X} \beta + \epsilon$$`

Here, `$Y$` and `$\epsilon$` are `$N$` by 1 vectors. `$\mathbb{X}$` is an `$N$` by `$k$` matrix, where `$k$` is one plus the number of independent variables in the regression. Finally, `$\beta$` is a `$k$` by 1 vector of coefficients (including the intercept).

---

It will turn out that the plug-in estimate here is:

`$$\hat\beta = ( \mathbf{X}^T\mathbf{X})^{-1}(\mathbf{X}^T\mathbf{Y})$$`

---

Consider our turnout regressions from a bit back:

``` r
summary(lm(Turnout ~ GDP, data=turnout))
```

```
##
## Call:
## lm(formula = Turnout ~ GDP, data = turnout)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.15949 -0.07948 -0.01742  0.08628  0.17013
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)  6.499e-01  1.540e-02  42.202   <2e-16 ***
## GDP         -4.975e-09  2.177e-09  -2.285   0.0268 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.09805 on 48 degrees of freedom
## Multiple R-squared:  0.09811,	Adjusted R-squared:  0.07932
## F-statistic: 5.222 on 1 and 48 DF,  p-value: 0.02677
```

---

``` r
with(turnout, cov(Turnout, GDP, use="complete")/var(GDP, use="complete"))
```

```
## [1] -4.975207e-09
```

---

``` r
summary(lm(Turnout ~ GDP + Temperature, data=turnout))
```

```
##
## Call:
## lm(formula = Turnout ~ GDP + Temperature, data = turnout)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.13323 -0.05916 -0.01721  0.02748  0.19650
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)  5.751e-01  5.458e-01   1.054    0.299
## GDP         -3.525e-09  3.006e-09  -1.173    0.249
## Temperature  9.409e-04  1.066e-02   0.088    0.930
##
## Residual standard error: 0.09201 on 35 degrees of freedom
##   (12 observations deleted due to missingness)
## Multiple R-squared:  0.06614,	Adjusted R-squared:  0.01278
## F-statistic: 1.239 on 2 and 35 DF,  p-value: 0.3019
```

---

``` r
xmat <- as.matrix(with(turnout, data.frame(Intercept=1, GDP=GDP, Temperature=Temperature)))
yvec <- turnout$Turnout
xmat
```

```
##       Intercept      GDP Temperature
##  [1,]         1      881          NA
##  [2,]         1     1155          NA
##  [3,]         1     1896          NA
##  [4,]         1     1672          NA
##  [5,]         1     1629          NA
##  [6,]         1     2139          NA
##  [7,]         1     2864          NA
##  [8,]         1     4022          NA
##  [9,]         1     3839          NA
## [10,]         1     6467          NA
## [11,]         1     7060          NA
## [12,]         1     8520          NA
## [13,]         1     7910        51.5
## [14,]         1    10510        48.6
## [15,]         1    10970        51.0
## [16,]         1    12420        53.0
## [17,]         1    14300        51.2
## [18,]         1    13300        51.6
## [19,]         1    18700        53.9
## [20,]         1    22900        51.8
## [21,]         1    27700        50.1
## [22,]         1    39400        50.9
## [23,]         1    48300        51.1
## [24,]         1    91500        51.3
## [25,]         1    84700        51.5
## [26,]         1    97000        50.7
## [27,]         1    58500        48.2
## [28,]         1    83100        52.2
## [29,]         1   100400        53.8
## [30,]         1   211400        49.4
## [31,]         1   261600        50.6
## [32,]         1   351600        51.1
## [33,]         1   428200        51.5
## [34,]         1   515300        51.9
## [35,]         1   649800        48.3
## [36,]         1   892700        50.3
## [37,]         1  1213000        52.3
## [38,]         1  1783000        51.6
## [39,]         1  2732000        52.8
## [40,]         1  3772000        51.0
## [41,]         1  4881000        53.3
## [42,]         1  6256000        53.6
## [43,]         1  7817000        54.3
## [44,]         1  9817000        53.7
## [45,]         1 11734000        52.1
## [46,]         1 14706538        51.9
## [47,]         1 16068805        56.6
## [48,]         1 18525933        56.2
## [49,]         1 21751238        55.7
## [50,]         1 28708161        55.5
```

``` r
yvec
```

```
##  [1] 0.58 0.55 0.58 0.80 0.79 0.73 0.70 0.79 0.81 0.74 0.78 0.71 0.82 0.79 0.78
## [16] 0.79 0.75 0.79 0.73 0.65 0.65 0.59 0.62 0.49 0.49 0.57 0.53 0.57 0.59 0.53
## [31] 0.52 0.63 0.60 0.64 0.63 0.63 0.57 0.56 0.55 0.55 0.51 0.56 0.50 0.52 0.57
## [46] 0.58 0.55 0.56 0.63 0.58
```

---

``` r
xmat <- xmat[13:nrow(xmat),]
yvec <- yvec[13:length(yvec)]
```

---

``` r
t(xmat)%*%xmat
```

```
##               Intercept          GDP  Temperature
## Intercept          38.0 1.538179e+08       1976.1
## GDP         153817885.0 2.501400e+15 8374162782.9
## Temperature      1976.1 8.374163e+09     102911.9
```

``` r
t(xmat)%*%yvec
```

```
##                     [,1]
## Intercept         23.170
## GDP         87519078.090
## Temperature     1203.719
```

---

``` r
solve(t(xmat)%*%xmat, tol=1e-20)
```

```
##                 Intercept           GDP   Temperature
## Intercept    3.519096e+01  1.349966e-07 -6.867170e-01
## GDP          1.349966e-07  1.067320e-15 -2.679037e-09
## Temperature -6.867170e-01 -2.679037e-09  1.341396e-02
```

``` r
solve(t(xmat)%*%xmat, tol=1e-20)%*%t(xmat)%*%yvec
```

```
##                      [,1]
## Intercept    5.750768e-01
## GDP         -3.524858e-09
## Temperature  9.408781e-04
```

---

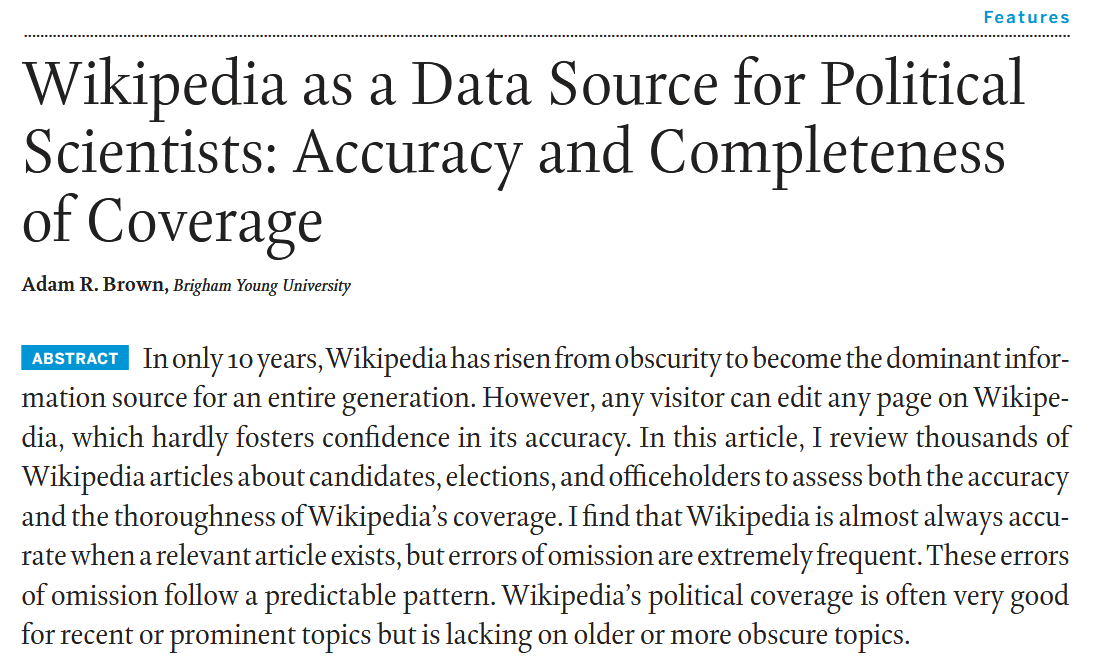

![OLS 1](Images/Brown1.png)

---

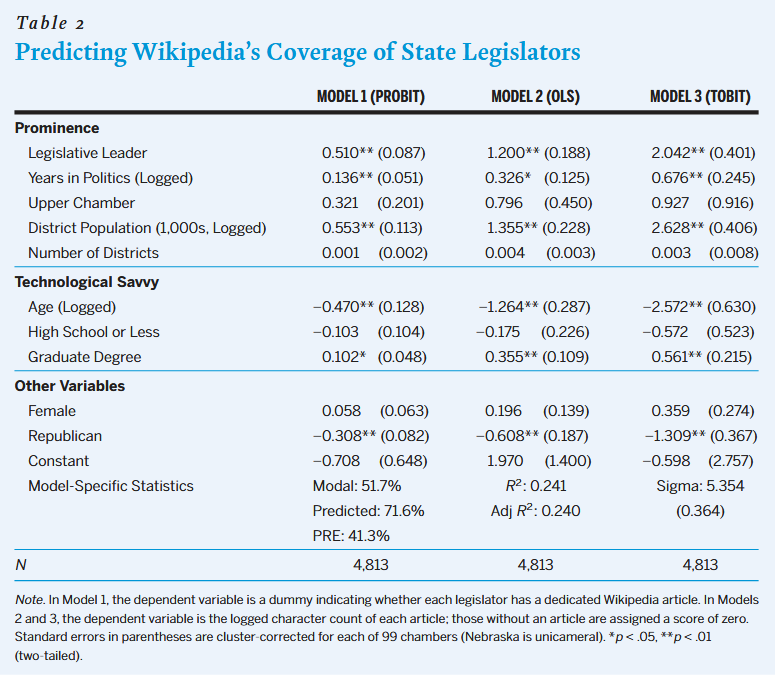

![OLS 2](Images/Brown2.png)
